about SHUNGE STEEL

Shunge Steel was established in 2008, located in the South China lron and Steel Marketing Lecong, Shunde District, Foshan City, the largest steel distribution center in China . We are a service-oriented comprehensive company integrating silicon steel trade, processing and distribution. We supply high-grade non-oriented silicon steel with thickness as low as 0.1mm, tailored for use in high-precision applications such as robotics and drones.

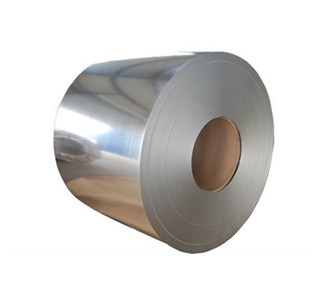

Ultra-thin non-grain oriented electrical steel

Ultra-thin non-oriented electrical steel is a special silicon steel material with a thickness significantly lower than the conventional standard, typically referring to cold-rolled non-oriented silicon steel thin strips with a thickness ranging from 0.10mm to 0.20mm. Its core value lies in significantly reducing high-frequency eddy current losses through ultra-thin design, while also maintaining high magnetic permeability and high strength, to meet the strict requirements of high efficiency and lightweight for high-end equipment such as eVTOL (Electric Vertical Takeoff and Landing) motors and humanoid robot motors.

Grade	Normal Thickness (mm)	Core Loss (w/kg)			Magnet induction B5000 (T)	Theoretical Density (g/cm³)
Grade	Normal Thickness (mm)	P1.0/400	P1.0/1000	P1.0/2000	Magnet induction B5000 (T)	Theoretical Density (g/cm³)
USWH30080H	0.10	9.00	28.30	72.70	1.66	7.60
10SWH950	0.10	9.10	29.30	76.20	1.69	7.65
10SWH1300	0.10	11.80	39.10	103.30	1.73	7.75
USWG55140	0.10	15.00	51.40	137.50	1.76	7.85
USWH40100H	0.15	9.50	33.30	93.20	1.66	7.60
15SW1200	0.15	10.10	35.70	100.60	1.64	7.65
15SWH1000	0.15	9.80	34.80	97.40	1.69	7.65
20SWG1200	0.20	11.20	43.20	128.50	1.70	7.65
20SWG1500	0.20	14.00	54.70	164.30	1.76	7.75
20SWG2000	0.20	19.50	77.00	231.80	1.80	7.85

OUR OUTSTANDING PRODUCTS

With nearly 20 years of experience in the industry, we can not only provide different grades of oriented silicon steel, but also provide customers with professional slitting, cutting, and core making services.

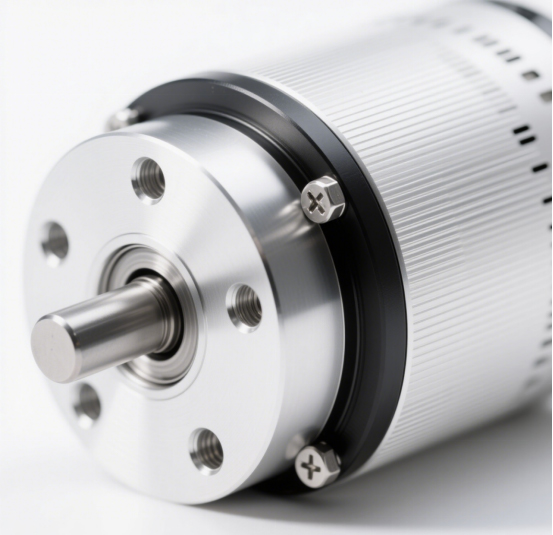

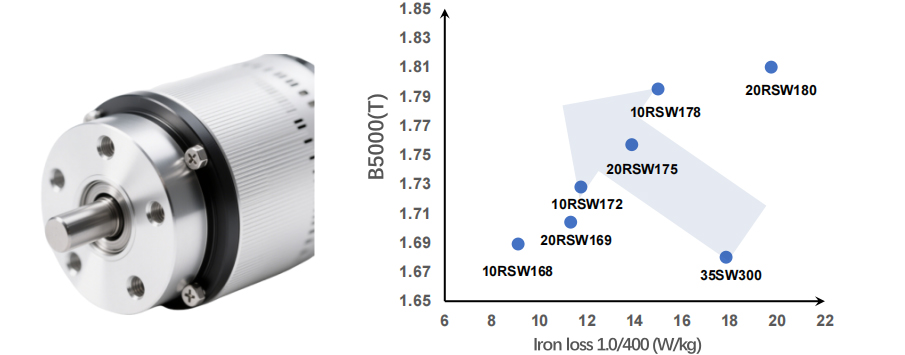

Electrical steel for humanoid robot - joint module motors
Electrical steel for humanoid robot - joint module motors

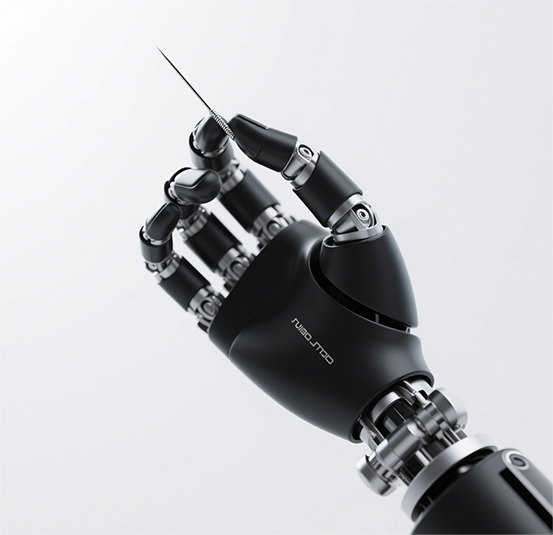

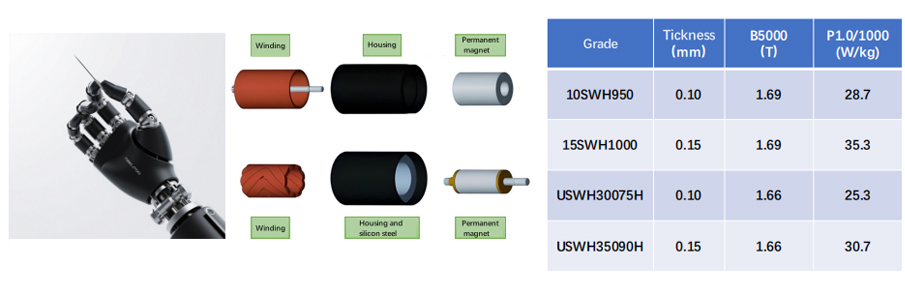

Electrical steel for humanoid robot - dexterous hand motors

RELIABLE / QUALITY / SUSTAINABILITY

We provide the most cost-effective raw materials and technical solutions for motor manufacturers.

Silicon Steel Provider

Providing Ultra-thin Silicon Steel with High quality and low price.
Transportation

Providing export customers with standard and safe shipping packaging and a full set of transportation solutions.

GET AN INSTANT QUOTE

Why choosing SG CORE?

Our products are designed according to international standards and delivered to customers with assured-quality and perfect after-sale services.

Reliable raw materials

There are different grades of ultra-thin silicon steel to choose from
Optimal project management

There are different grades of ultra-thin silicon steel to choose from
Fast production and delivery

quick turnaround times with our professional processing.
Reasonable price

We make reasonable profit, leaving enough profit space for customers.

Our Industry Application

eVTOL Electric Motor，humanoid robot Motor，New energy vehicle Motors.

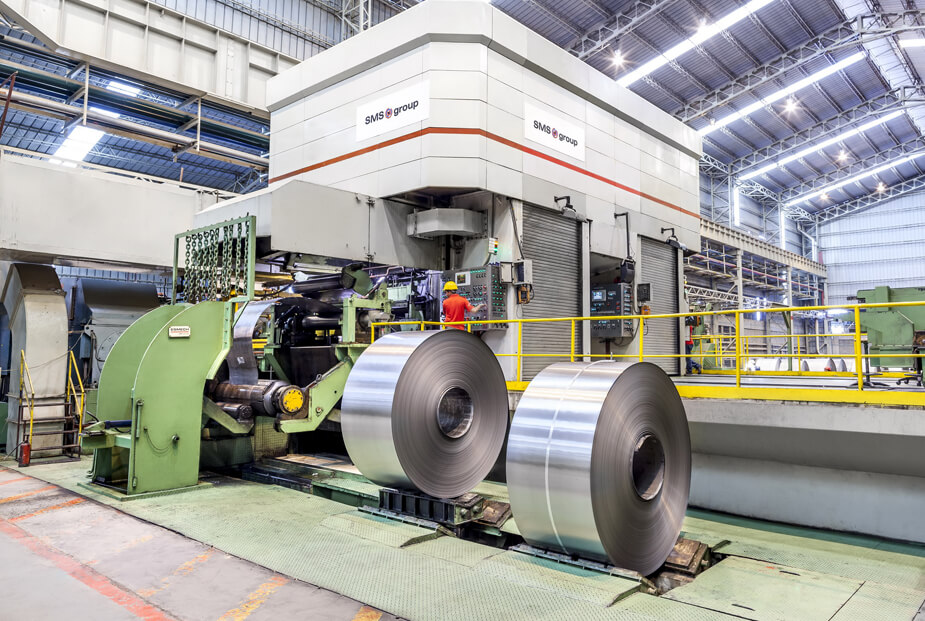

eVTOL Electric Motor

Cars and motorcycles: Many traditional cars and motorcycles use lead-acid batteries as starting batteries, but replacing lead with lithium batteries can provide better performance and experience. Lithium batteries have higher energy density and faster charging speed, as well as lower self discharge rate and longer service life, making them an ideal substitute for automotive and motorcycle batteries.
humanoid robot Motor

Cars and motorcycles: Many traditional cars and motorcycles use lead-acid batteries as starting batteries, but replacing lead with lithium batteries can provide better performance and experience. Lithium batteries have higher energy density and faster charging speed, as well as lower self discharge rate and longer service life, making them an ideal substitute for automotive and motorcycle batteries.
New energy vehicle Motors

Cars and motorcycles: Many traditional cars and motorcycles use lead-acid batteries as starting batteries, but replacing lead with lithium batteries can provide better performance and experience. Lithium batteries have higher energy density and faster charging speed, as well as lower self discharge rate and longer service life, making them an ideal substitute for automotive and motorcycle batteries.
