Semi-finished products - EI silicon steel lamination

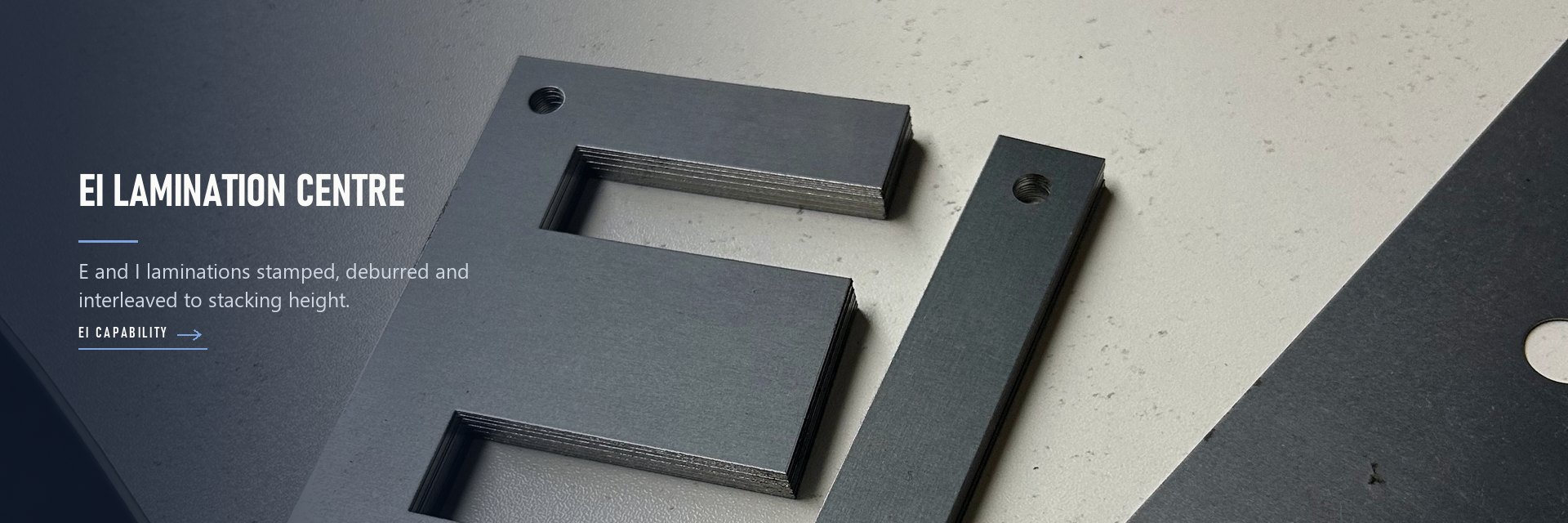

EI silicon steel lamination is a type of magnetic material made by laminating thin sheets of silicon steel to create a core for electrical transformers and other electromagnetic devices. The EI designation refers to the shape of the core, which consists of two E-shaped pieces and one I-shaped piece.
The key advantage of EI silicon steel laminations is their high magnetic permeability, which allows them to efficiently transfer electrical energy between two coils. They also have lower core losses, which means that they save more energy as heat during operation.
Price of EI lamination varies depending on factors such as steel raw material quality, production volume, and market competition.
Here are specifications of regular EI lamination in stock:
Part 1 - Single phase EI sheet
No. |
Product name |

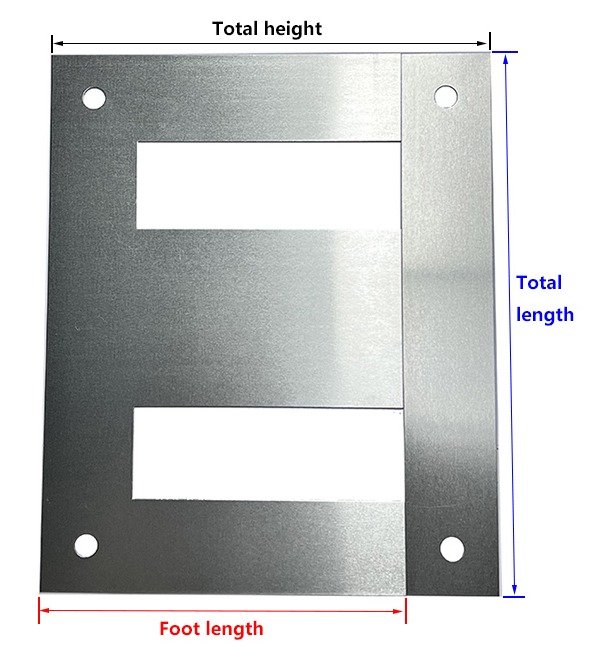

Total height(mm) |
Total length(mm) |
Foot length(mm) |
1 |
EI-28 |
25 |
28 |
21 |
2 |
EI-30 |
25 |
30 |
20 |
3 |
EI-35 |
29.5 |
35 |
24.5 |
4 |
EI-38.4 |
32 |
38.4 |
25.6 |
5 |
EI-41 |
33 |
41 |
27 |
6 |
EI-41-2H/4H |
33 |
41 |
27 |
7 |
EI-42-4H |
35 |
42 |
28 |
8 |
EI-48 |
40 |
48 |
32 |
9 |
EI-48-2H/4H |
40 |
48 |
32 |
10 |
EI-54 |
45 |
54 |
36 |
11 |
EI-57 |
47.5 |
57 |
38 |
12 |
EI-57-2H/4H |
47.5 |
57 |
38 |
13 |
EI-60-4H |
50 |
60 |
40 |
14 |
EI-66 |
55 |
66 |
44 |
15 |
EI-66-2H/4H |
55 |
66 |
44 |
16 |
EI-75-4H |
62.5 |
75 |
50 |
17 |
EI-76.2-4H |
63.5 |
76.2 |
50.8 |
18 |
EI-78-4H |
65 |
78 |
52 |
19 |
EI-84-4H |
70 |
84 |
56 |
20 |
EI-85.8-4H |
71.5 |
85.8 |
57.2 |
21 |
EI-96-4H |
80 |
96 |
64 |
22 |
EI-101-4H |
82.5 |
101 |
66.5 |
23 |
EI-114-4H |
95 |
114 |
76 |
24 |
EI-105-4H |
87.5 |
105 |
70 |
25 |
EI-120-4H |
100 |
120 |
80 |
26 |
EI-133.2-4H |
111 |
133.2 |
88.8 |
27 |
EI-150-4H |
125 |
150 |
100 |
28 |
EI-152.4-4H |
127 |
152.4 |
101.6 |
29 |
EI-162-4H |
135 |
162 |
108 |
30 |
EI-168-4H |
140 |
168 |
112 |
31 |
EI-180-4H |
150 |
180 |
120 |
32 |
EI-190.5-4H |
158.75 |
190.5 |
127 |
33 |
EI-228.6-4H |
190.5 |
228.6 |
152.4 |
Remark: 1. Pattern and naming: no hole(EI-XX); Single Middle-punched(EI-XX-2H); 4 holes(EI-XX-4H) 2. Tolerance: ±10mm. |
Part 2 - three phases EI sheet
No. |
Product name |
Total height(mm) |
Total length(mm) |
Foot length(mm) |
1 |
EI-three phase-30CORE-150 |
135 |
150 |
105 |
2 |
EI-three phase-38.1CORE-190.5 |
171.45 |
190.5 |
133.35 |
3 |
EI-three phase-45.8CORE-228.6 |
205.7 |
228.6 |
160 |
4 |
EI-three phase-50CORE-250 |
250 |
250 |
200 |
5 |
EI-three phase-60CORE-300 |
300 |
300 |
240 |
Remark: 1. Pattern and naming: Unpunched(EI-XX) 2. Tolerance: ±10mm. |
Semi-finished products - Customized silicon steel lamination
Silicon steel sheets in special shapes are used in a variety of applications, including electrical transformers, motors, generators, and other electromagnetic devices. The special shape of the silicon steel sheet is designed to optimize the magnetic field strength and minimize energy loss in these devices.
Here from Shunge Steel you could customize own silicon steel stamping sheets or stacking sheets in all kinds of shapes or patterns. To confirm whether the design is available and make a quotation accordingly, the following information is essential:

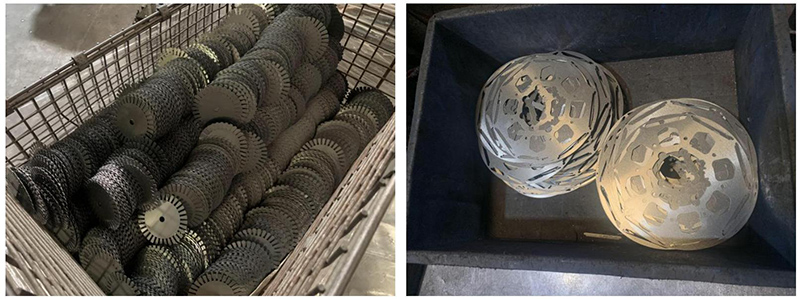

Customized stamping sheets samples
Stamping line demonstration - Factory tour

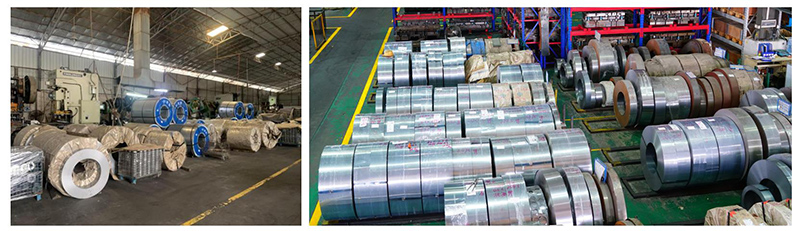

Raw material

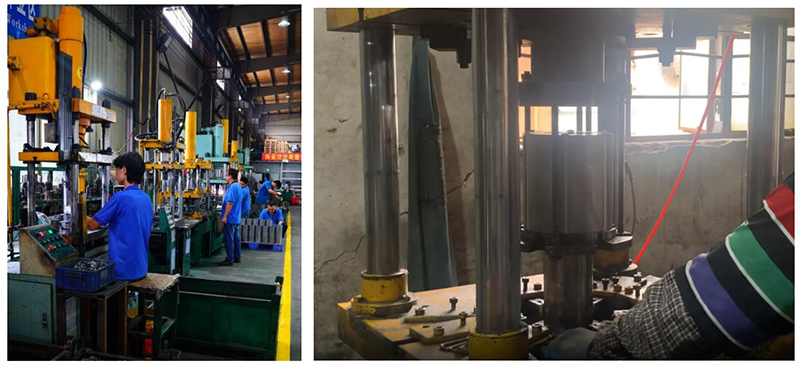

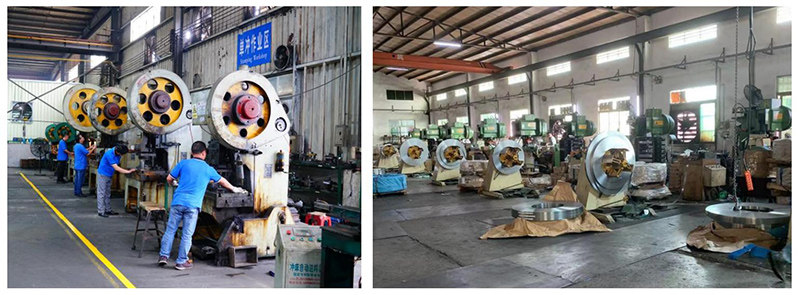

Stamping workshop

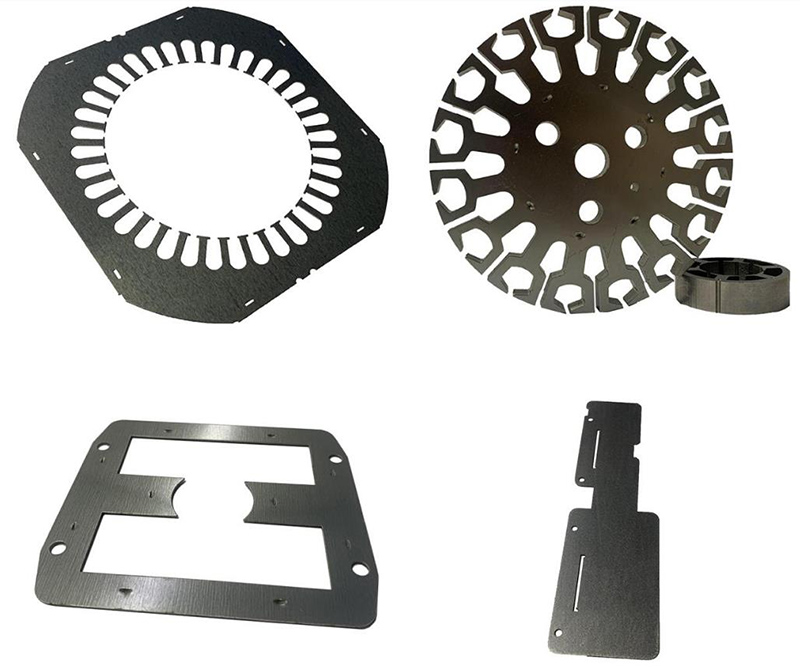

Available various stamping design
Optional stacking service

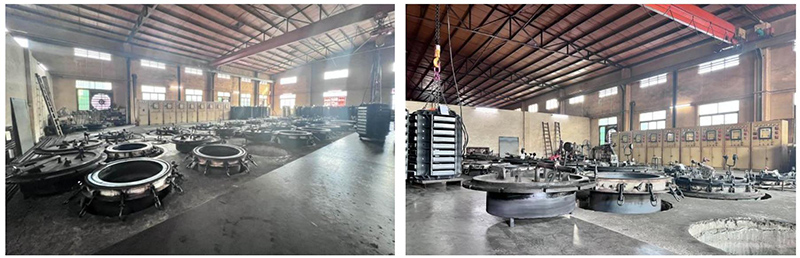

Annealing workshop

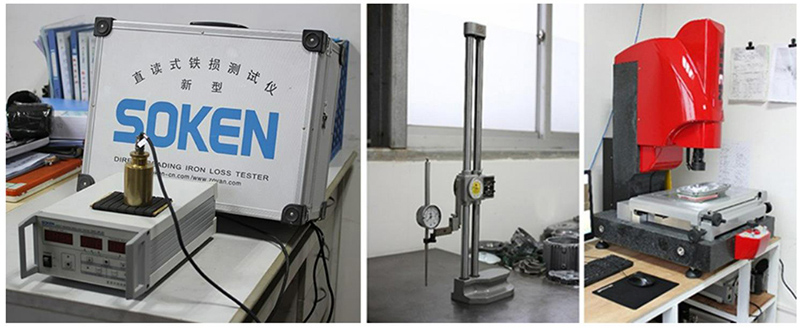

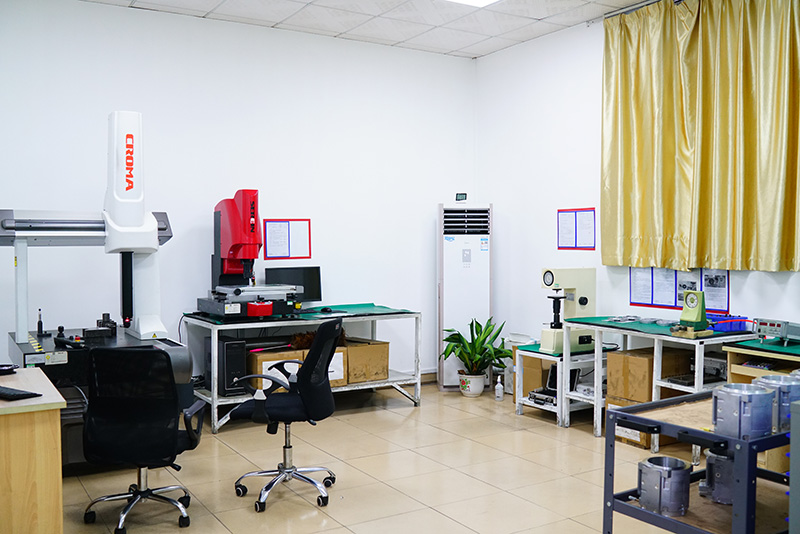

Product quality control system
Customizable packing service

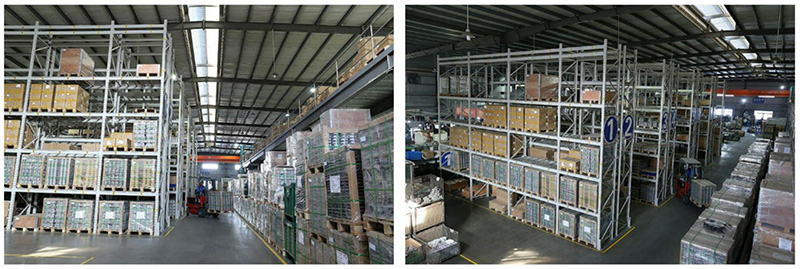

Finished product warehouse
