Shunge Steel was established in 2008, located in the South China lron and Steel Marketing Lecong, Shunde District, Foshan City, the largest steel distribution center in China . We are a service-oriented comprehensive company integrating silicon steel trade, processing and distribution.

GET AN INSTANT QUOTE

Materials Used in Stator Lamination Stacks

There are several types of electrical steels used for manufacturing stator lamination stacks, including:

Silicon Steel

Silicon steel is the most common material used for stator lamination stacks due to its low cost, high magnetic permeability, and low core loss.

Non-oriented Electrical Steel

Non-oriented electrical steel has a uniform crystal structure that allows it to maintain its magnetic properties under varying directions of magnetization.

Grain-Oriented Electrical Steel

Grain-oriented electrical steel is composed of crystals that are aligned in one direction, making it ideal for applications where the magnetic flux is consistently oriented in one direction.

Materials Used in Stator Lamination Stacks

Grain-Oriented Silicon Steel

Grain-oriented electrical steel is composed of crystals that are aligned in one direction, making it ideal for applications where the magnetic flux is consistently oriented in one direction.

The manufacturing of oriented silicon steel requires a more controlled composition and more sophisticated processing. The final texture development process includes a series of careful working and annealing operations, ensuring that the material stays essentially single-phase, particularly during the final anneal. This is because phase transformation destroys the texture.

Saturation Level Magnetic Flux Density(T)	Core loss per kg unit (W/KG)		According to AISI Std	According to DIN EN 10106 Std	Thickness(mm)
Saturation Level Magnetic Flux Density(T)	Magnetic Flux Density 1.7 Tesla	Magnetic Flux Density 1.5 Tesla
1.83	1.20	0.77	M3	M120-23S	0.23
1.83	1.20	0.80	M4	M120-27S	0.27
1.83	1.30	0.83	M4	M130-27S	0.27
1.83	1.20	0.82	M5	M120-30S	0.30
1.83	1.30	0.84		M130-30S
1.78	1.50	0.93		M150-30S
1.78	1.65	1.00	M6	M165-35S	0.35

1.90	0.85	0.60	M3	M85-23P	0.23
1.90	0.90	0.62		M90-23P
1.88	1.00	0.67		M100-23P
1.91	0.90	0.65	M4	M90-27P	0.27
1.91	0.95	0.68		M95-27P
1.89	1.00	0.71		M100-27P
1.89	1.10	0.75		M110-27P
1.91	1.00	0.72	M5	M100-30P	0.30
	1.05	0.75		M105-30P
	1.11	0.77		M110-30P
1.90	0.75	0.55	M3	H75-23L	0.23
1.91	0.80	0.57	M3	H80-23L	0.23
1.91	0.85	0.63	M4	H85-27L	0.27

OUR OUTSTANDING PRODUCTS

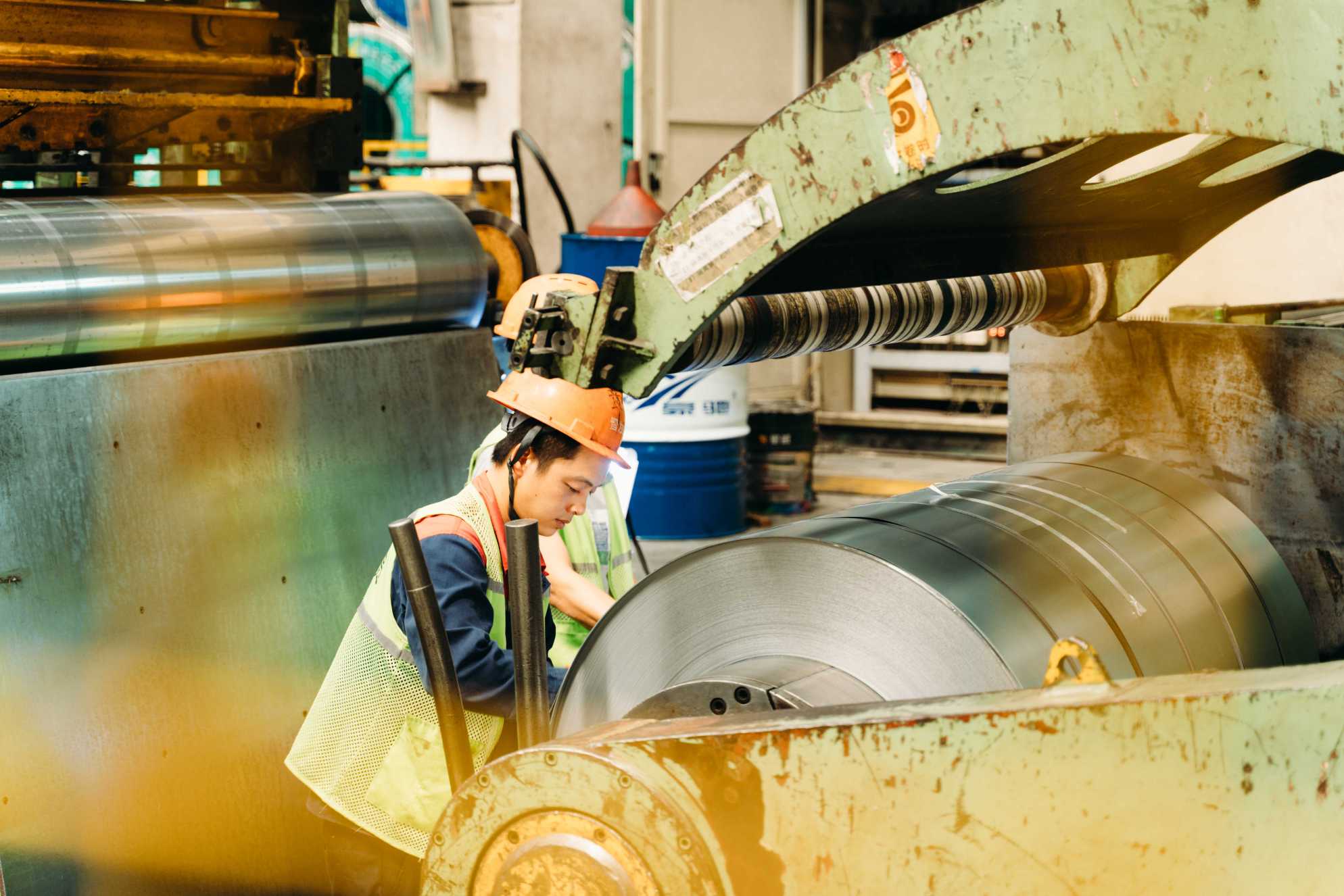

With nearly 20 years of experience in the industry, we can not only provide different grades of oriented silicon steel, but also provide customers with professional slitting, cutting, and core making services.

CRGO STEEL

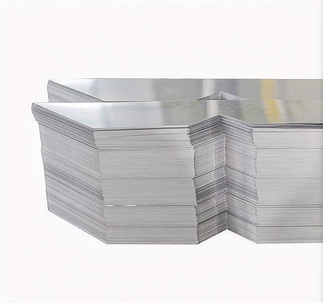

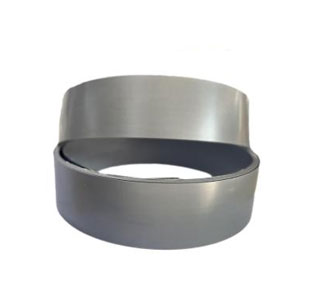

SLITTED STEEL

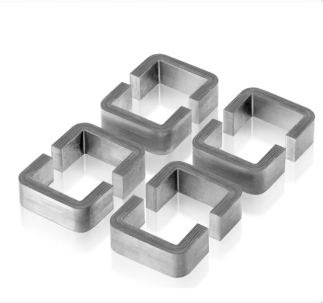

CD TRANSFORMER

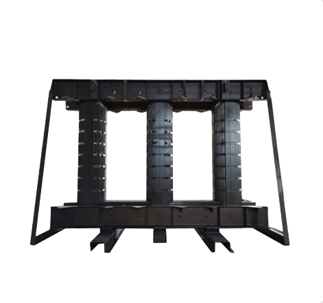

DTY-TYPE TRANSFORMER

RELIABLE/QUALITY/SUSTAINABILITY

We provide transformer manufacturers with the most cost-effective raw materials and technical solutions.

Silicon Steel Provider

Providing CRGO and CRNGO Steel with High quality and low price.
Transformer Core Manufacturer

Designing and manufacturing 1-phase, 3-phase power transformer cores with voltage and capacity up to 10kV and 25,000 KVA, alternately.
Transportation

Providing export customers with standard and safe shipping packaging and a full set of transportation solutions.

GET AN INSTANT QUOTE

Why choosing SG CORE?

Our products are designed according to international standards and delivered to customers with assured-quality and perfect after-sale services.

Reliable raw materials

Different grades of oriented silicon steel available.
Optimal project management

Dedicated teams for personalized support offered.
Fast production and delivery

quick turnaround times with our professional processing.
Reasonable price

We make reasonable profit, leaving enough profit space for customers.

Our Industry Application

Household Energy Storage System,Solar Battery for Household Energy Storage,Energy Storage Power Station,Wind Power,Solar lights,Solar System,Telecom,UPS

Construction

Steels are commonly used in construction fields, such as galvanized steel, hot rolled and cold rolled steel, vary from usage, Shunge could be the reliable sourcing partner for our customers to select the suitable steels that fits the needs.
Automobile

Hot-dipped Galvanized, Cold-rolled, Pickling and hot-rolled steels are generally used in automobile manufacturing. Shunge steel would be your flexible, reliable, efficient partner to provide you with market-leading products from advanced steel mills.
Transformer

Silicon steel(grain-oriented (GO) and non-oriented (NGO))also known as electrical steel, lamination steel, or transformer steel, is a ferritic alloy of iron and silicon that have magnetic properties, which plays an important roll of making motors and transformers.
