Transformers use various types of cores, with the most common ones being E-type and C-type cores. What are the differences between these two types of cores? And in which applications are they commonly used? Today, SHUNGE will tell you all about it. E-type and EI-type cores are widely used in the industry. One of their main advantages is that the primary and secondary windings can share the same core, resulting in a higher window utilization factor. The core also provides protection for the windings, making them less susceptible to mechanical damage. Additionally, E-type cores have a larger heat dissipation area and reduce magnetic field dispersion. However, E-type cores also have some drawbacks. They tend to have larger magnetic resistance due to the presence of larger air gaps in the magnetic path, which reduces the overall performance of the magnetic circuit. Furthermore, E-type cores are prone to issues such as higher copper wire usage, greater leakage inductance, and susceptibility to external magnetic field interference.   C-type cores are manufactured by winding cold-rolled silicon steel strips, which are then subjected to heat treatment and impregnation processes to form closed cores. These closed cores are then split to create two C-type cores. The windings are then encapsulated within the cores, and a pair of C-type cores are assembled and secured together to form the transformer. C-type cores can have very small air gaps, and they offer advantages such as smaller size, lighter weight, and higher material utilization. So, how can we identify the type of transformer core used in a power supply? 1. Identification based on appearance: E-type cores have a shell-like structure, with a core that wraps around the coils. They are commonly made of high-quality silicon steel sheets such as D41 and D42. C-type cores, on the other hand, are made of cold-rolled silicon steel strips and have a core-type structure. 2. Identification based on the number of winding terminals: Power transformers often have two windings, a primary and a secondary, resulting in four terminal connections. Some power transformers may have an additional shielding layer between the primary and secondary windings for AC noise and interference suppression. In such cases, the shielding layer is grounded. Therefore, power transformers typically have at least four terminal connections. 3. Identification based on the stacking method of silicon steel sheets: In E-type power transformers, the silicon steel sheets are interleaved, with no air gaps between the E-shaped and I-shaped sheets. The entire core fits together tightly. In contrast, audio input/output transformers have certain gaps between their E-shaped sheets, which serves as a distinguishing feature from power transformers. C-type transformers are generally used as power transformers. Shunge Steel, founded in 2008 and headquartered in Lecong, Foshan, produces cores with features such as low iron loss, high magnetic permeability, and high saturation induction. Our cores find applications in various fields, including signal communication, power drive, traction, renewable resources, charging station power control, high-precision measurement and control, new energy vehicle battery management, power control, welding, and new energy vehicle motor control. If you have any core requirements, please feel free to contact us.

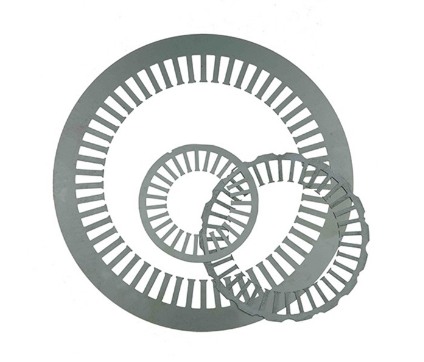

The punch size of the steel lamination is given by the design. The following discusses the factors that affect quality in manufacturing when the design remains unchanged. 1. Loss and magnetic permeability of silicon steel sheets The specific loss properties of silicon steel sheets from different manufacturers and different batch numbers from the same manufacturer are not exactly the same.  So they have a large impact on the motor core lamination or the EI lamination. Although there are standard prescribed values, they fluctuate within a certain range. If the amplitude of the fluctuation is relatively large, or the material of the silicon steel sheet itself does not meet the requirements, then the use of such silicon steel sheets on the motor will greatly affect the performance of the motor, especially for medium and large motors, where iron loss accounts for 10% of the loss. The larger the proportion, the more obvious the impact on performance (mainly temperature rise and power factor). This is a hidden danger that is difficult to detect from the electromagnetic design. 2. Silicon steel sheet mold is out of tolerance Silicon steel sheet molds, such as slot punching dies and release molds, have a gap between the punch and the die that gradually increases during use. Some manufacturers are still dealing with production when the mold is out of tolerance, and the consequences are: the punching burrs are significantly increased. If the burr is large, the iron loss and no-load current will increase, causing the temperature rise of the motor to increase, the power factor to decrease, and the efficiency to decrease. 3. Insulation between silicon steel sheets The insulation between silicon steel sheets can suppress the eddy current in the iron core, thereby reducing the resulting eddy current loss (it is included in the iron loss). The insulating layer between chips is formed in the following three ways: (1) Inter-chip insulation composed of the paint film of the cold-rolled silicon steel sheets; (2) The motor manufacturer applies insulating paint on the punched sheets without paint film; (3) The motor manufacturer oxidizes the punched sheets to form an insulating layer .
