Pickling steel is generally seen in automobile industry due to its cost-effective features and usages. Shunge provides grades of pickling steel like SPHC in forms of coils or sheets and so on. Customized products and service are welcomed.
MOQ :
10TPayment :
T/T LC at sightProduct Origin :
ChinaShipping Port :
Guangzhou/ ShenzhenPickling steel not only ensures good surface quality effectively, but also reduces the cost for production, which makes it an optional material to replace cold-rolled under certain requirement.
Features
1. Replacing cold-rolled sheets with pickled sheets, which can save costs.
2. The performance quality is good, compared with the ordinary hot-rolled sheet, the hot-rolled pickled sheet removes the surface iron oxide scale, improves the surface quality of the steel, and is convenient for welding, oiling and painting.
3. High dimensional accuracy, after leveling, the pattern can be changed to a certain extent, thereby reducing the deviation of unevenness
4. Improve the surface finish and enhance the appearance
Product specification (For reference)
|
Product |
Pickling steel coil |
|
Thickness |
2.0-5.0mm |
|
Width |
1250/1500mm or customized |
|
Standard |
ASTM EN DIN GB ISO JIS BA ANSI |
|
Steel Grade |
Q195, SPHC |
|
Technique |
hot rolled |
|
Package |
Standard export package |
Regular Raw Material Grade (For reference)
|
Grade |
C% |
Mn% |
P% |
S% |
Remark |
|
SPHC |
≤0.12 |
≤0.45 |
≤0.050 |
≤0.05 |
Commercial use |
|
SPHD |
≤0.1 |
≤0.40 |
≤0.04 |
≤0.04 |
For drawing |
|
SPHE |
≤0.08 |
≤0.35 |
≤0.035 |
≤0.035 |
For deep drawing |
Mechanical properties of common raw material grades (For reference)
|
Grade |
Tensile strength N/㎡ |
Elongation (% ) |
|||||
|
≥1.2~ ＜1.6mm |
≥1.6~ ＜2.0mm |
≥2.0~ ＜2.5mm |
≥2.5~ ＜3.2mm |
≥3.2~ ＜4.0mm |
≥4.0mm |
||
|
SPHC |
≥270 |
≥27 |
≥29 |
≥29 |
≥29 |
≥31 |
≥31 |
|
SPHC |
≥270 |
≥30 |
≥32 |
≥33 |
≥35 |
≥37 |
≥39 |
|
SPHE |
≥270 |
≥31 |
≥33 |
≥35 |
≥37 |
≥39 |
≥41 |
Application

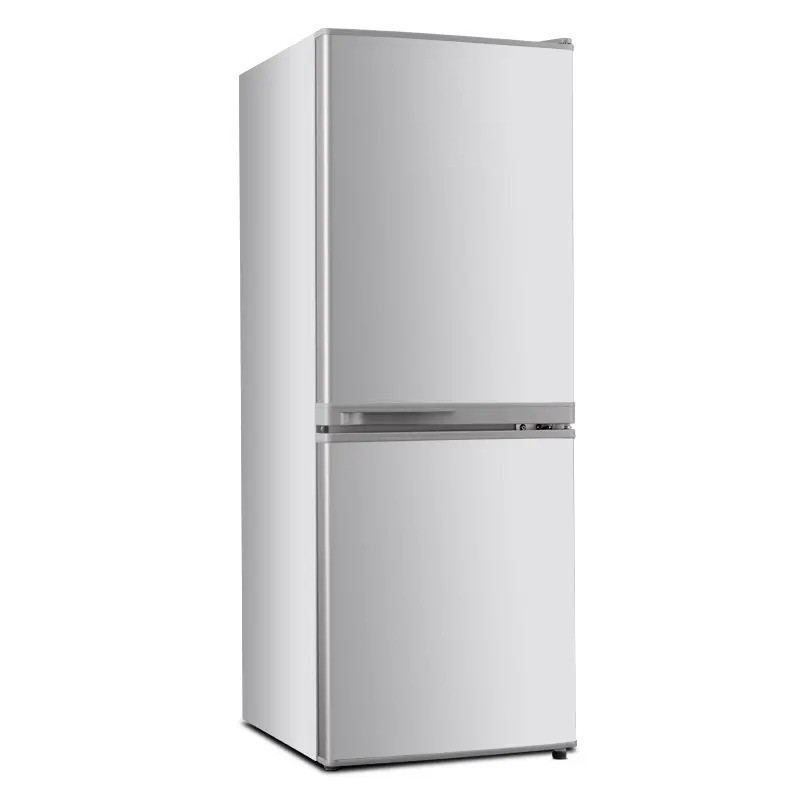

Pickling coil with excellent features of uniform surface and high quality of performance, is a favorable choice for manufacturing home appliance.
 |
 |
Packing
Pickling steel is generally seen in automobile industry due to its cost-effective features and usages. Shunge provides grades of pickling steel like SPHC in forms of coils or sheets and so on. Customized products and service are welcomed.
Pickling steel is generally seen in automobile industry due to its cost-effective features and usages. Shunge provides grades of pickling steel like SPHC in forms of coils or sheets and so on. Customized products and service are welcomed.
Pickling steel is generally seen in automobile industry due to its cost-effective features and usages. Shunge provides grades of pickling steel like SPHC in forms of coils or sheets and so on. Customized products and service are welcomed.
