Deep drawing quality ST13 custom size cold rolled steel sheet

Deep drawing quality ST13 custom size cold rolled steel sheet

Deep drawing quality ST13 custom size cold rolled steel sheet

Cold rolled steel is widely used for manufacturing of most industries and fields, it's generally seen and applied. When it comes to high quality deep drawing usage at competitive price, Shunge would try best to earn this cost-effective products and service for you based on your actual requirement.

Coperating with leading steel suppliers in China, Shunge is your steel relative solution provider with at least 500,000 tons of annual production output of cold rolled steel, in customizable forms in coils, sheets, plates and strips.



Advantages

  1. Accurate in size, uniform in thickness, and the thickness difference of the coils generally does not exceed 0.01-0.03 mm or less, which can meet the requirements of high-precision tolerances.
  2. The surface quality of cold-rolled products is superior, there are no defects such as pitting, hot-pressed iron oxide, etc., and coils of different surface roughness (glossy or hemp) can be produced according to user requirements. Aesthetically appealing, thus ideal for manufacturing products that are used to attract consumer attention.
  3. After cold rolling, the mechanical properties of the steel such as hardness, tensile strength, and yield strength are improved and more consistent.
  4. It is possible to increase the steel's strength by up to 20% because of strain hardening.
  5. Steel manufacturers are able to achieve a lower range of thickness than that of hot rolled steel coils, could obtain extremely thin strips that cannot be produced by hot rolling (up to 0.001 mm or less).
  6. Low carbon steel is mainly used, which requires good cold bending and welding performance, as well as certain stamping performance.



The Compare Table of Cold Rolling Low-carbon Steel Plate and Steel Strip Mark (For reference)

Material type

Q/BQB

GB

JIS

DIN

EN

ASTM

Grade

Grade

Grade

Grade

Grade

Standard No.

Comparison chart of cold rolled low carbon and ultra-low carbon steel plate and steel strip grades

Commercial quality

SPCC
ST12
BLC
DC01

Q195
10-P
10-S
08-P
08-S
08AI-P
08AI-S

SPCC

ST12

FeP01
DC01

ASTM
A366/A366M-96
(ASTMA366/A366M-97)

(DQ)

Drawing quality

SPCD
ST13
BLD
DC03

10-Z
08-Z
08AI-Z

SPCD

USt13
RRSt13

FeP03
DC03

ASTM
A619/A619M-96

(DDQ)

Deep drawing quality

SPCE-F
SPCE-HF
SPCE-ZF
ST14-F
ST14-HF
ST14-ZF
ST14-T
BUSD
DC04

08AI-F
08AI-HF
08AI-ZF

SPCE

ST14

FeP04
DC04

ASTM
A620/A620M-96
(ASTMA620/A620M-97)

(SDDQ)

Super deep drawing quality

ST15
BUFD
DC05



SPCEN

ST15

FeP05
DC05



(EDDQ)

Extra-deep drawing quality

ST16
BSC2
BSC3
BSUFD
DC06





ST16

FeP06
DC06





Mechanical Properties of Cold Rolled Steel

Usage

Grade

Thickness(mm)

Width(mm)

Yield Strength(Mpa)

Tensile Strength(Mpa)

Commercial Quality
(CQ)

DC01

SPCC

ST12

BLC

0.125-3.0

600-2000

≤280

270-410

Drawing Quality
(DQ)

DC03

SPCD

ST13

BLD

≤240

270-370

Deep Drawing Quality
(DDQ)

DC04

SPCE

ST14

BLE

≤210

270-350

Super Deep Drawing Quality

(SDDQ)

DC05

ST15

BUFD

≤180

270-330

Extra-deep Drawing Quality

(EDDQ)

DC06

SPCEN

ST16

BSIFD

≤170

270-330



Product Specification  (For reference)

Product

Cold Rolled Steel

Standard

Q/BB 305-2021, GB/T 5213-2008

Grade

Q195,Q215,Q235,SPCC,SPCD,SPCE,SPCEN,ST12,ST13,ST14,ST15,ST16,DC01,DC03,DC04,DC05,DC06

Thickness

0.25-1.99 mm

Width

1250 mm

Length

customized

Tolerance

Thickness: ± 0.02 mm

Width: ± 2 mm

Coil weight

3-8 tons/ roll or based on customer requirement

Surface quality

FA/ FB/ FC

Surface texture/

roughness (Ra,µm)

Extra-bright: ≤0.3

Bright: ≤0.4

Semi-bright: ≤0.9

Normal: 0.6-1.9

Rough: >1.6

Extra-rough: 3.5-5

Further processing

Slitting/ Decoiling/ Blanking

Package

Metal protective ring/ Waterproof wrapping paper/ Buckle/ Metal band/ Wooden pallet



Application

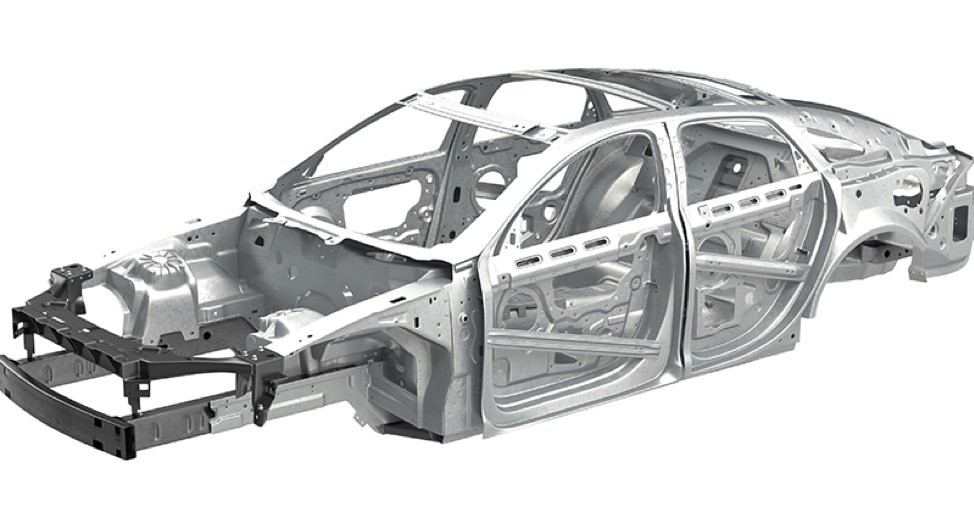

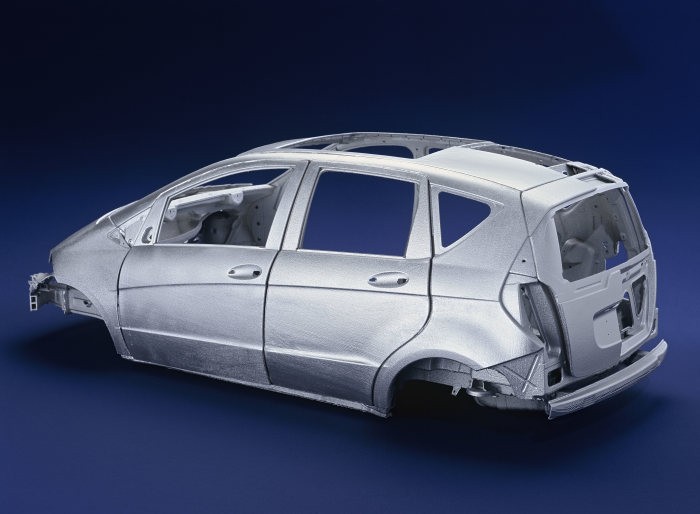

Automobile manufacturing, Home appliance, Precision Instruments, Aviation, Construction material, Industrial equipment and so on.

It can also be further processed as pickling, rolling hard coil, ordinary cold rolling, galvanizing (electric galvanizing, anti-fingerprint, hot-dip galvanized steel), aluminum zinc plating, tin plating, color coating, electrical steel (silicon steel sheet).
