Shunge is the A level CRGO Electrical steel supplier of leading China steel mills, supplying prime quality silicon steel transformer steel as well as steel processing service of slitting, stamping, modernize CNC centre could also provide semi/finished steel products.
MOQ :
10TPayment :
T/T LC at sightProduct Origin :
ChinaShipping Port :
Guangzhou/ ShenzhenThe silicon content of cold-rolled grain oriented silicon steel sheet is above 3.0%. The main purpose of cold-rolled grain-oriented silicon steel strip is for transformer manufacturing, so it is also called cold-rolled transformer silicon steel. In order to meet different standard requirement, there are 3 main series in the market.
GO silicon steel categories and recommended application filed
Varieties |
Common type |
High induction type |
Domain refined high induction type |
Large motors |
* |
* |
|
Large transformers |
* |
* |
* |
Medium and small transformers |
* |
* |
* |
Distributing transformers |
* |
* |
|
Voltage regulators |
* |
* |
|
Reactor and magnetic amplifiers |
* |
* |
* |
IF transformers |
|
* |
|
Mutual inductors |
* |
* |
|
TV transformers |
* |
* |
|
Radio transformers |
* |
* |
|
Radio broadcast transformers |
|
* |
|
Standard specification of GO silicon steel
Item |
GO Electrical steel |
Available thickness(mm) |
0.23 0.27 0.30 0.35 |
Available Width (mm) |
800~1200 or customized |
Inside Diameter(mm) |
508 |
Weight |
2~5T |
Note: Coil weight can be customized
Dimensional and shape tolerances (For reference)
Available thickness (mm) |
Thickness tolerance (mm) |
Transverse thickness tolerance (mm) |
Longitudinal thickness tolerance (mm) |
Width tolerance (mm) |
Flatness (%) |
Camber 2m (mm) |
0.23 |
±0.020 |
≤0.020 |
≤0.030 |
0~+2 |
≤1.5 |
≤1.0 |
0.27 |
±0.030 |
|||||
0.30 |
||||||
0.35 |
Technical indexes of GO Electrical steel (For reference)
Electromagnetic property standard
Type |
Available thickness (mm) |
Grade |
Density (kg/dm³) |
Max core loss (W/kg) |
Min. Magnetic induction (T) |
Common type |
0.23 |
23SQ110 |
7.65 |
1.10 |
1.80 |
0.27 |
27SQ110 |
7.65 |
1.10 |
1.82 |
|
27SQ120 |
7.65 |
1.20 |
1.8 |
||
0.30 |
30SQ120 |
7.65 |
1.20 |
1.82 |
|
30SQ130 |
7.65 |
1.30 |
1.81 |
||
0.35 |
35SQ135 |
7.65 |
1.35 |
1.80 |
|
35SQ145 |
7.65 |
1.45 |
1.80 |
||
35SQ155 |
7.65 |
1.55 |
1.80 |
||
High magnetic induction type |
0.23 |
22SQG085 |
7.65 |
0.85 |
1.87 |
23SQG090 |
7.65 |
0.90 |
1.87 |
||
23SQG095 |
7.65 |
0.95 |
1.87 |
||
0.27 |
27SQG090 |
7.65 |
0.90 |
1.89 |
|
27SQG95 |
7.65 |
0.95 |
1.89 |
||
27SQG100 |
7.65 |
1.00 |
1.89 |
||
0.30 |
30SQG100 |
7.65 |
1.00 |
1.89 |
|
30SQG105 |
7.65 |
1.05 |
1.89 |
||
30SQG110 |
7.65 |
1.10 |
1.89 |
||
30SQG120 |
7.65 |
1.20 |
1.89 |
||
0.35 |
35SQG115 |
7.65 |
1.15 |
1.89 |
|
35SQG125 |
7.65 |
1.25 |
1.89 |
||
35SQG135 |
7.65 |
1.35 |
1.89 |
||
Domain refined high magnetic induction type |
0.23 |
23SQGD080 |
7.65 |
0.80 |
1.89 |
23SQGD085 |
7.65 |
0.85 |
1.89 |
||
23SQGD090 |
7.65 |
0.90 |
1.89 |
||
0.27 |
27SQGD085 |
7.65 |
0.85 |
1.89 |
|
27SQGD090 |
7.65 |
0.90 |
1.89 |
||
27SQGD095 |
7.65 |
0.95 |
1.89 |
||
0.30 |
30SQGD095 |
7.65 |
0.95 |
1.89 |
|
30SQGD100 |
7.65 |
1.00 |
1.89 |
||
30SQGD105 |
7.65 |
1.05 |
1.89 |
Magnetic Properties( For reference)
Typical Electromagnetic Property
Type |
Available thickness(mm) |
Grade |
Density (kg/dm³) |
Max core loss(W.kg) |
Induction(T) |
||||
P15/50 |
P17/50 |
P15/60 |
P17/60 |
B8 |
B25 |
||||
Common type |
0.23 |
23SQ110 |
7.65 |
0.76 |
1.05 |
1.03 |
1.40 |
1.89 |
1.95 |
0.27 |
27SQ110 |
7.65 |
0..75 |
1.06 |
1.04 |
1.38 |
1.89 |
1.94 |
|
27SQ120 |
7.65 |
0.81 |
1.10 |
1.07 |
1.46 |
1.89 |
1.94 |
||
0.30 |
30SQ120 |
7.65 |
0.80 |
1.12 |
1.08 |
1.45 |
1.89 |
1.94 |
|
30SQ130 |
7.65 |
0.83 |
1.16 |
1.12 |
1.54 |
1.88 |
1.94 |
||
0.35 |
35SQ135 |
7.65 |
0.87 |
1.22 |
1.18 |
1.63 |
1.87 |
1.91 |
|
35SQ145 |
7.65 |
0.93 |
1.30 |
1.25 |
1.72 |
1.85 |
1.91 |
||
35SQ155 |
7.65 |
1.00 |
1.40 |
1.35 |
1.85 |
1.85 |
1.91 |
||
High magnetic induction type |
0.23 |
22SQG085 |
7.65 |
0.62 |
0.83 |
0.80 |
1.09 |
1.91 |
1.95 |
23SQG090 |
7.65 |
0.64 |
0.87 |
0.84 |
1.13 |
1.91 |
1.95 |
||
23SQG095 |
7.65 |
0.65 |
0.90 |
0.87 |
1.17 |
1.91 |
1.95 |
||
0.27 |
27SQG090 |
7.65 |
0.64 |
0.88 |
0.86 |
1.16 |
1.91 |
1.96 |
|
27SQG95 |
7.65 |
0.67 |
0.92 |
0.89 |
1.21 |
1.91 |
1.95 |
||
27SQG100 |
7.65 |
0.69 |
0.95 |
0.92 |
1.25 |
1.90 |
1.95 |
||
0.30 |
30SQG100 |
7.65 |
0.71 |
0.97 |
0.93 |
1.28 |
1.91 |
1.96 |
|
30SQG105 |
7.65 |
0.73 |
1.00 |
0.96 |
1.30 |
1.91 |
1.95 |
||
30SQG110 |
7.65 |
0.74 |
1.0 |
0.97 |
1.32 |
1.91 |
1.95 |
||
30SQG120 |
7.65 |
0.75 |
1.04 |
0.99 |
1.34 |
1.91 |
1.95 |
||
0.35 |
35SQG115 |
7.65 |
0.83 |
1.11 |
1.09 |
1.50 |
1.90 |
1.95 |
|
35SQG125 |
7.65 |
0.89 |
1.22 |
1.18 |
1.60 |
1.90 |
1.94 |
||
35SQG135 |
7.65 |
0.96 |
1.32 |
1.27 |
1.72 |
1.90 |
1.94 |
||
Domain refined high magnetic induction type |
0.23 |
23SQGD080 |
7.65 |
0.57 |
0.78 |
0.75 |
1.01 |
1.90 |
1.95 |
23SQGD085 |
7.65 |
0.60 |
0.82 |
0.79 |
1.07 |
1.90 |
1.95 |
||
23SQGD090 |
7.65 |
0.63 |
0.86 |
0.83 |
1.12 |
1.89 |
1.94 |
||
0.27 |
27SQGD085 |
7.65 |
0.61 |
0.83 |
0.81 |
1.13 |
1.90 |
1.95 |
|
27SQGD090 |
7.65 |
0..63 |
0.86 |
0.83 |
1.15 |
1.89 |
1.95 |
||
27SQGD095 |
7.65 |
0.66 |
0.90 |
0.87 |
1.18 |
1.89 |
1.94 |
||
0.30 |
30SQGD095 |
7.65 |
0.68 |
0.91 |
0.88 |
1.18 |
1.91 |
1.94 |
|
30SQGD100 |
7.65 |
0.70 |
0.95 |
0.92 |
1.26 |
1.91 |
1.94 |
||
30SQGD105 |
7.65 |
0.71 |
0.97 |
0.94 |
1.28 |
1.90 |
1.94 |
Insulating coating
Item |
Characteristic |
Composing Component |
Inorganic coating |
Interlamination resistance |
High interlamination resistance and excellent insulation |
Adhesion |
Fine adhesion,close combination of coating and substrate,unease to peel. |
Lamination factor |
uniform coating and high lamination factor make goof lamination effect. |
Processability |
Excellent stamping and welding ability |
Heat resistance |
The coating can withstand 800℃ stress relieving annealing in non-oxidation environment |
Corrosion resistance |
The coating can immune form the corrosion of insulating coil,mechanical oil, cooling coil,anti freezing oil and Freon. |
Typical Mechanical Properties(For reference)
Available thickness (mm) |
Hardness (HV1) |
Tensile strength (MPa) |
Yield strength (MPa) |
Elongation (%) |
Number of bends |
Lamination factor (%) |
Adhesion (grade) |
0.23 |
198 |
350 |
330 |
12 |
21 |
96.5 |
B-C |
0.27 |
200 |
355 |
332 |
12 |
21 |
97.0 |
B-C |
0.30 |
204 |
359 |
334 |
13 |
21 |
97.0 |
B-C |
0.35 |
204 |
362 |
342 |
13 |
21 |
97.5 |
B-C |
Cross reference of Designation (For reference)
Working closely with leading steel mills, we provide prime and reliable quality grain oriented silicon steel which meets the international standards.
Type |
Thickness (mm) |
Shousteel |
Baosteel |
NSC |
JFE |
TKS |
Posco |
NI&SCO |
AK |
Common type |
0.23 |
23SQ110 |
B23G110 |
|
|
C110-23 |
|
|
|
0.27 |
27SQ10 |
B27G120 |
27Z120 |
7JG120 |
C120-27 |
27PG120 |
NV27S-120 |
M-4 |
|
|
|
27Z130 |
27JG130 |
C130-27 |
27PG130 |
NV27S-130 |
M-4 |
||
|
|
|
|
C140-27 |
27PD140 |
NV27S-140 |
|
||
0.30 |
30SQ120 |
B30G120 |
30Z120 |
30JG120 |
|
30PG120 |
NV30S-120 |
|
|
30SQ130 |
B30G130 |
30Z130 |
30JG130 |
C130-30 |
30PG130 |
NV30S-130 |
|
||
30SQ140 |
B30G140 |
30Z140 |
30JG140 |
C140-30 |
30PG140 |
NV30S-140 |
M-5 |
||
|
|
|
|
C150-30 |
|
|
|
||
High magnetic induction type |
0.27 |
27SQG090 |
B27P090 |
27ZH090 |
|
|
27PH095 |
|
|
27SQG095 |
B27P095 |
27ZH095 |
|
H095-27 |
27PH095 |
|
|
||
27SQG100 |
B27P100 |
27ZH100 |
27JGH100 |
H103-27 |
27PH100 |
NV27P-100 |
|
||
|
|
27ZH110 |
27JGH110 |
|
|
|
H-1 |
||
|
|
|
|
|
|
|
|
||
0.30 |
30SQG100 |
B30P100 |
30ZH100 |
30JGH100 |
H105-30 |
30PH100 |
|
|
|
30SQG105 |
B30P105 |
30ZH105 |
30JGH105 |
H111-30 |
30PH105 |
NV30P-105 |
|
||
|
|
30ZH110 |
30JGH110 |
|
|
|
|
||
30SQG120 |
B30P120 |
30ZH120 |
|
|
|
|
|
||
Domain refined high magnetic induction type |
0.23 |
23SQGD080 |
B23R080 |
23ZDKH80 |
|
|
23PHD080 |
|
|
23SQGD085 |
B23R085 |
23ZDKH85 |
|
|
23PHD085 |
|
|
||
23SQGD090 |
B23R090 |
23ZDKH90 |
|
|
|
|
|
||
0.27 |
27SQGD085 |
|
|
|
|
|
|
|
|
27SQGD090 |
B27R090 |
27ZDKH90 27ZDMH90 |
27JGSD |
H090-27 |
27PHD090 |
|
|
||
27SQGD095 |
B27R095 |
27ZDKH95 27ZDMH95 |
27JGSD95 |
|
27PHD095 |
|
H-1DR |
||
0.30 |
30SQGD095 |
|
|
|
|
|
|
|
|
30SQGD100 |
|
|
|
|
|
|
|
||
30SQGD105 |
|
|
|
|
|
|
|

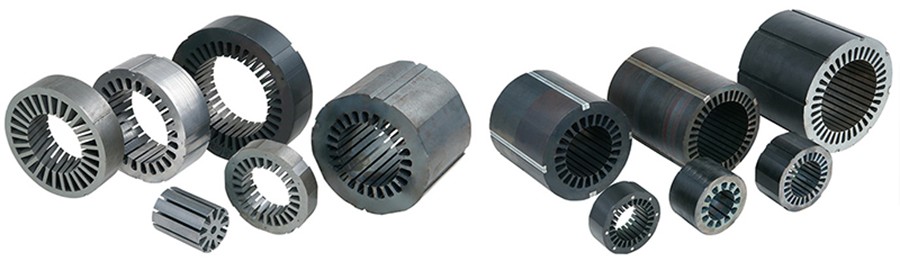

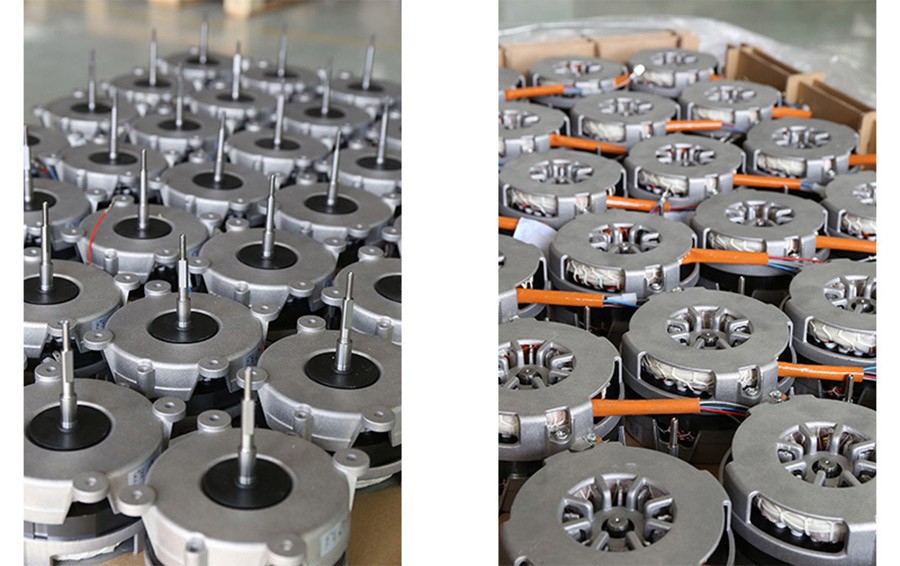

Application

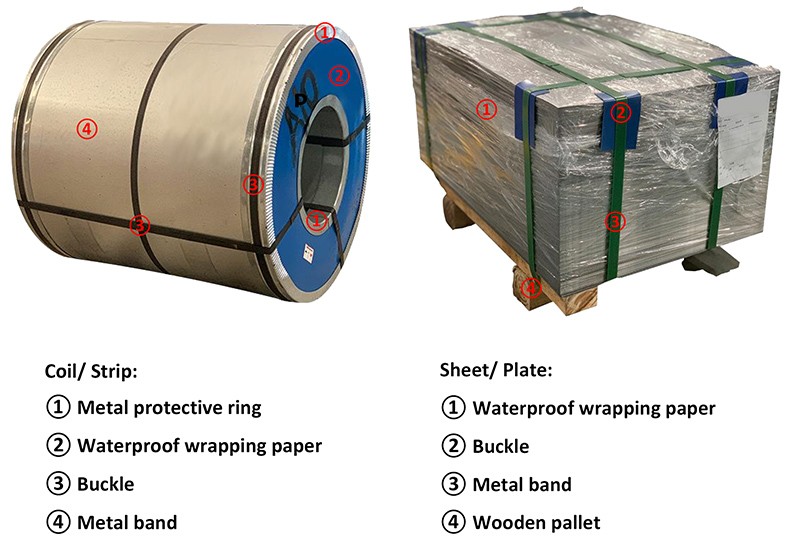

Packing
