Electro galvanized steel is carbon steel with a corrosion-resistant zinc coating applied to one or both of its sides by electro-deposition. The continuous electrolytic coating process covers the steel surface with an exceptionally uniform thickness, which can enhance forming and joining operations.
MOQ :
10TPayment :
T/T LC at sightProduct Origin :
ChinaShipping Port :
Guangzhou/ ShenzhenAdvantage

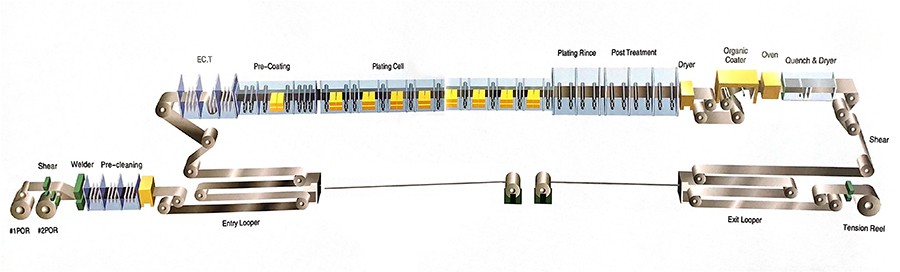

EGI Production Line
Mechanical Properties (For reference)
|
Item |
Mechanical Properties（%） |
Application |
|||
|
YP(N/mm²） |
TS（N/mm²） |
EL（%） |
|||
|
Cold Rolled Coil |
SECC (JISG3313) |
180-230 |
≥270 |
≥37 |
Commercial Usage |
|
SECD (JISG3313) |
130-180 |
≥270 |
≥39 |
Drawing usage |
|
Specification (For reference)
|
Available size |
Thickness：0.4~2.0mm Width：800~1380mm Coating weight：8~51 g/㎡（single side） Max coil weight:≤25MT standard：ASTM, DIN,ISI, GB,BS,JIS |
|
Surface Treatment: Oiling, chemical passivation, phosphating, fingerprint resistant, self-lubricating fingerprint resistant. |
|
|
Remarks: The table above show the widest range of product dimensions. For a detail acceptable order range, please contact Sales and Marketing Division. |
|

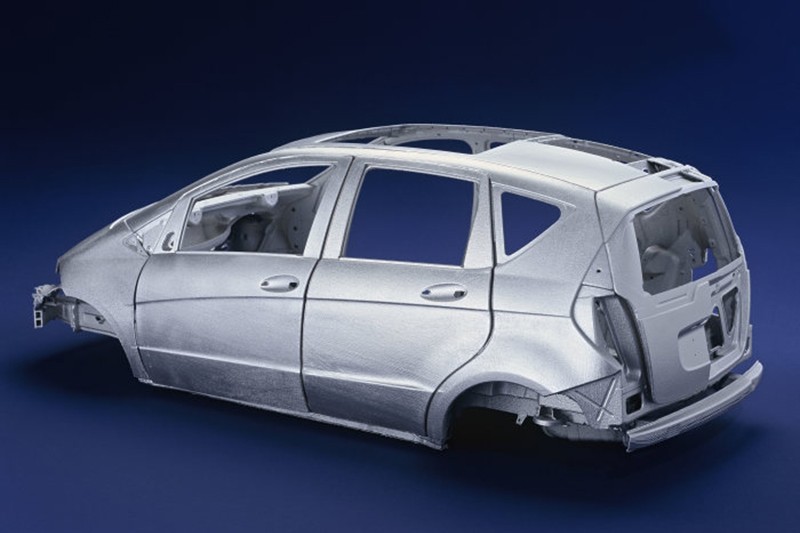

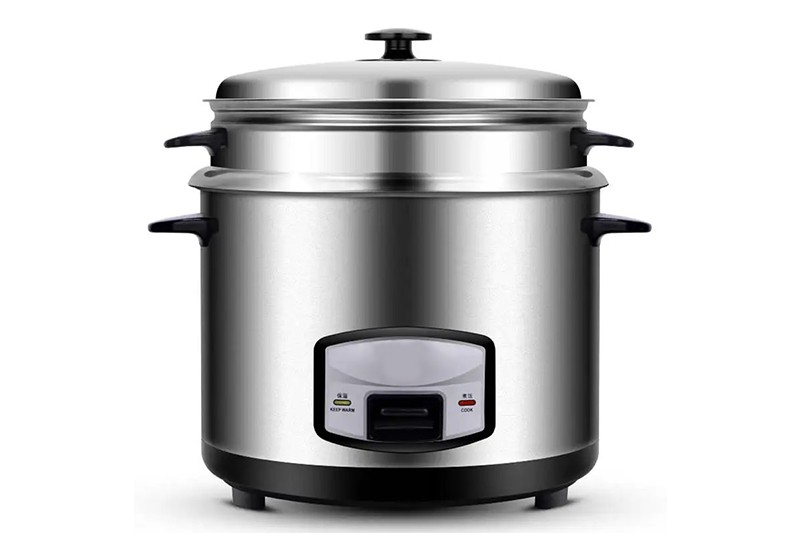

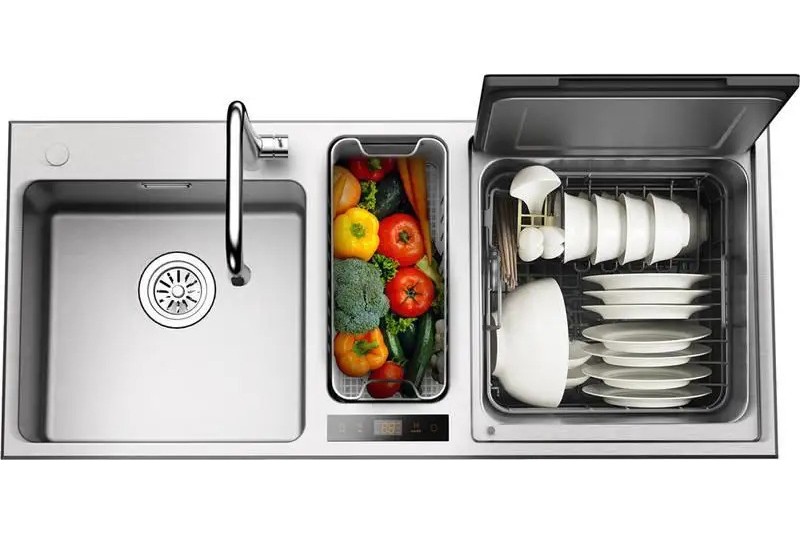

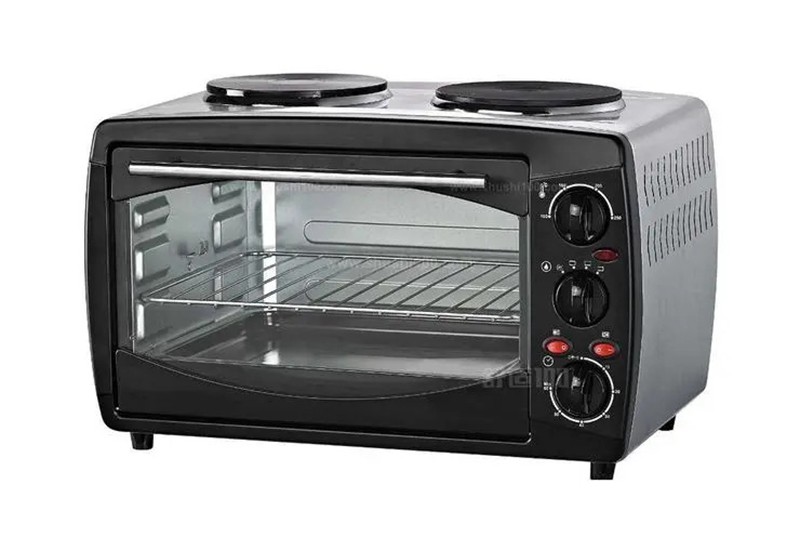

Appliaction
 |
 |
 |
 |
Packing
Electro galvanized steel is carbon steel with a corrosion-resistant zinc coating applied to one or both of its sides by electro-deposition. The continuous electrolytic coating process covers the steel surface with an exceptionally uniform thickness, which can enhance forming and joining operations.
Electro galvanized steel is carbon steel with a corrosion-resistant zinc coating applied to one or both of its sides by electro-deposition. The continuous electrolytic coating process covers the steel surface with an exceptionally uniform thickness, which can enhance forming and joining operations.
Electro galvanized steel is carbon steel with a corrosion-resistant zinc coating applied to one or both of its sides by electro-deposition. The continuous electrolytic coating process covers the steel surface with an exceptionally uniform thickness, which can enhance forming and joining operations.
Electro galvanized steel is carbon steel with a corrosion-resistant zinc coating applied to one or both of its sides by electro-deposition. The continuous electrolytic coating process covers the steel surface with an exceptionally uniform thickness, which can enhance forming and joining operations.
