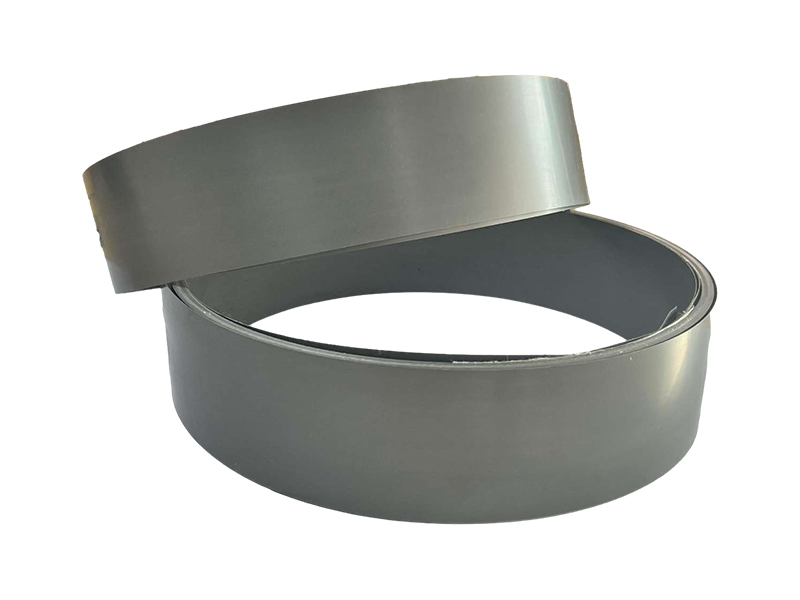

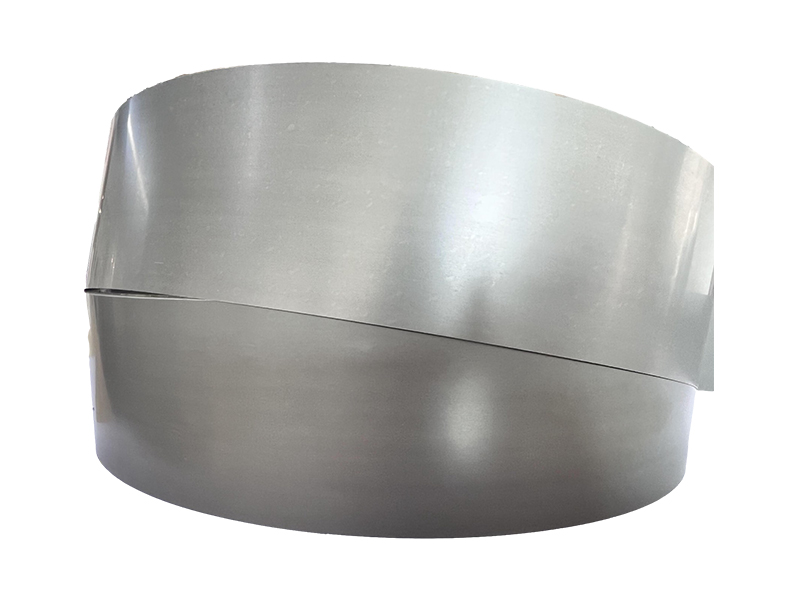

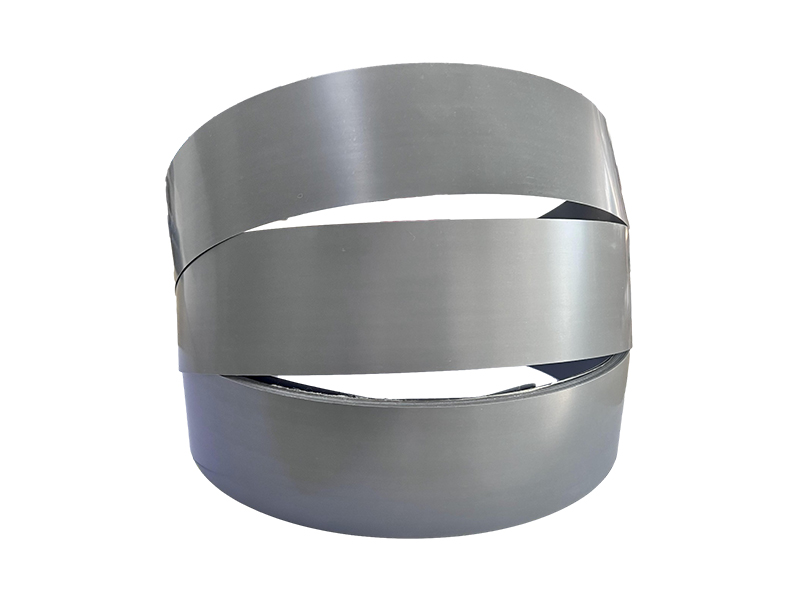

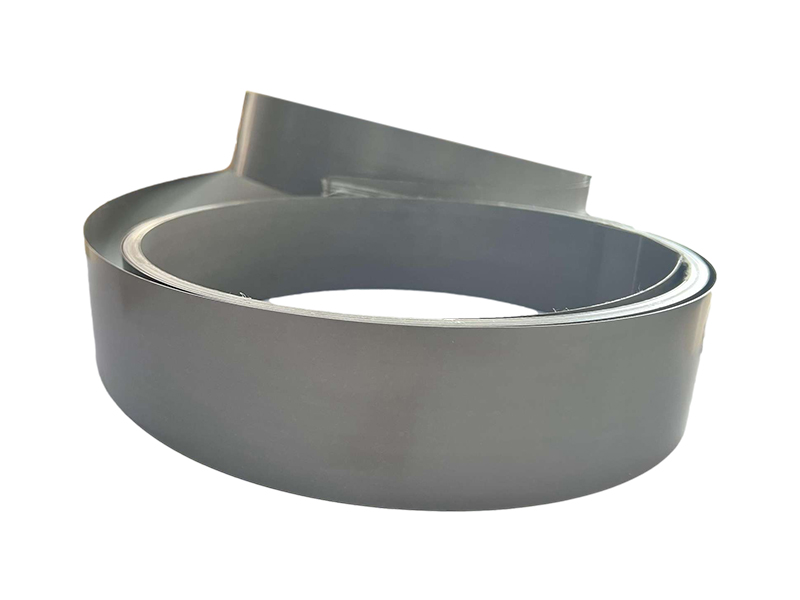

Shenzhen/GuangzhouCold-rolled grain-oriented silicon steel, often referred to as cold-rolled transformer steel, exhibits outstanding characteristics, including high magnetic induction and low iron loss. It finds widespread application in the manufacturing industries that produce transformer cores of various types.
Key Product Features
Standard specification
|
Item |
GO Electrical steel |
|
Available thickness (mm) |
0.15、0.18、0.20、0.23、0.27、0.30 |
|
Available Width (mm) |
900~1200 |
|
Inside Diameter (mm) |
508 |
|
Weight (T) |
2~5 |
Note: Coil weight can be customized.
Dimensional tolerances
|
Nominal thickness(mm) |
Thickness tolerance(mm) |
Transverse thickness tolerance(mm) |
Longitudinal thickness tolerance(mm) |
Width tolerance(mm) |
Flatness (%) |
Camber 2m(mm) |
|
0.15 |
+0.008 -0.015 |
≤0.010 |
≤0.012 |
0~+0.5 |
≤1.0 |
≤0.8 |
|
0.18 |
||||||
|
0.20 |
||||||
|
0.23 |
+0.010 -0.020 |
|||||
|
0.27 |
≤0.012 |
|||||
|
0.30 |
+0.010 -0.025 |
Note:
1. Traverse thickness deviation refers to the thickness difference between the sheet center and 15mm from the edge.
2. The longitudinal thickness difference is the difference of the measured maximum thickness and the minimum thickness in the longitudinal direction at an arbitrary 2m length of steel on a arbitrary coil.
3. Please consult us if you have any special dimensional requirements.
Electromagnetic Properties
Electromagnetic Property Standard
Table 1 - Standard Electromagnetic Property Of High magnetic induction type
|
Nominal Thickness(mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|
50Hz / 60Hz |
||||
|
P1.7/50 |
J800 |
|||
|
0.18 |
18SQG075 |
0.75 |
1.89 |
0.955 |
|
18SQG080 |
0.80 |
1.88 |
0.955 |
|
|
18SQG085 |
0.85 |
1.88 |
0.955 |
|
|
18SQG090 |
0.90 |
1.88 |
0.955 |
|
|
0.20 |
20SQG075 |
0.75 |
1.89 |
0.955 |
|
20SQG080 |
0.80 |
1.89 |
0.955 |
|
|
20SGQ085 |
0.85 |
1.88 |
0.955 |
|
|
20SQG090 |
0.90 |
1.88 |
0.955 |
|
|
20SQG095 |
0.95 |
1.88 |
0.955 |
|
|
0.23 |
23SQG080 |
0.80 |
1.89 |
0.955 |
|
23SQG085 |
0.85 |
1.89 |
0.955 |
|
|
23SQG090 |
0.90 |
1.89 |
0.955 |
|
|
23SQG095 |
0.95 |
1.88 |
0.955 |
|
|
23SQG100 |
1.00 |
1.88 |
0.955 |
|
|
0.27 |
27SQG090 |
0.90 |
1.89 |
0.960 |
|
27SQG095 |
0.93 |
1.89 |
0.960 |
|
|
27SQG100 |
0.96 |
1.89 |
0.960 |
|
|
27SQG110 |
1.05 |
1.88 |
0.960 |
|
|
0.30 |
30SQG095 |
0.95 |
1.89 |
0.965 |
|
30SQG100 |
0.98 |
1.89 |
0.965 |
|
|
30SQG105 |
1.01 |
1.89 |
0.965 |
|
|
30SQG120 |
1.05 |
1.88 |
0.965 |
Table 2 - Standard Electromagnetic Property of Domain refined type
|
Nominal Thickness(mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|
50Hz / 60Hz |
||||
|
P1.7/50 |
J800 |
|||
|
0.18 |
18SQGD060 |
0.60 |
1.88 |
0.955 |
|
18SQGD065 |
0.65 |
1.88 |
0.955 |
|
|
18SQGD070 |
0.70 |
1.88 |
0.955 |
|
|
18SQGD075 |
0.75 |
1.88 |
0.955 |
|
|
0.20 |
20SQGD060 |
0.60 |
1.89 |
0.955 |
|
20SQGD065 |
0.65 |
1.89 |
0.955 |
|
|
20SQGD070 |
0.70 |
1.88 |
0.955 |
|
|
20SQGD075 |
0.75 |
1.88 |
0.955 |
|
|
20SQGD080 |
0.80 |
1.88 |
0.955 |
|
|
0.23 |
23SQGD070 |
0.70 |
1.89 |
0.955 |
|
23SQGD075 |
0.75 |
1.89 |
0.955 |
|
|
23SQGD080 |
0.80 |
1.89 |
0.955 |
|
|
23SQGD085 |
0.85 |
1.88 |
0.955 |
|
|
23SQGD090 |
0.90 |
1.88 |
0.955 |
|
|
0.27 |
27SQGD080 |
0.80 |
1.89 |
0.960 |
|
27SQGD085 |
0.84 |
1.89 |
0.960 |
|
|
27SQGD090 |
0.87 |
1.89 |
0.960 |
|
|
27SQGD098 |
0.92 |
1.88 |
0.960 |
|
|
0.30 |
30SQGD090 |
0.90 |
1.89 |
0.965 |
|
30SQGD095 |
0.92 |
1.89 |
0.965 |
|
|
30SQGD100 |
0.96 |
1.89 |
0.965 |
|
|
30SQGD105 |
1.00 |
1.88 |
0.965 |
Typical Electromagnetic Property
Table 1 - Typical Electromagnetic Property of High Magnetic Induction Type
|
Nominal Thickness (mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|||
|
P1.5/50 a |
P1.5/60 a |
P1.7/50 |
P1.7/50 b |
50Hz / 60Hz |
|||
|
J800 |
|||||||
|
0.18 |
18SGQ075 |
0.55 |
0.73 |
0.74 |
0.96 |
1.90 |
0.955 |
|
18SGQ080 |
0.58 |
0.76 |
0.79 |
1.02 |
1.90 |
0.955 |
|
|
18SGQ085 |
0.61 |
0.79 |
0.83 |
1.08 |
1.89 |
0.955 |
|
|
18SGQ090 |
0.64 |
0.85 |
0.87 |
1.19 |
1.88 |
0.955 |
|
|
0.20 |
20SGQ075 |
0.56 |
0.73 |
0.74 |
0.96 |
1.91 |
0.955 |
|
20SGQ080 |
0.59 |
0.77 |
0.79 |
1.03 |
1.90 |
0.955 |
|
|
20SGQ085 |
0.61 |
0.80 |
0.83 |
1.08 |
1.90 |
0.955 |
|
|
20SGQ090 |
0.63 |
0.82 |
0.87 |
1.12 |
1.89 |
0.955 |
|
|
20SGQ095 |
0.65 |
0.85 |
0.92 |
1.19 |
1.88 |
0.955 |
|
|
0.23 |
23SGQ080 |
0.60 |
0.79 |
0.80 |
1.05 |
1.92 |
0.955 |
|
23SGQ085 |
0.62 |
0.81 |
0.83 |
1.09 |
1.92 |
0.955 |
|
|
23SGQ090 |
0.64 |
0.84 |
0.85 |
1.12 |
1.91 |
0.955 |
|
|
23SGQ095 |
0.66 |
0.86 |
0.88 |
1.16 |
1.91 |
0.955 |
|
|
23SGQ100 |
0.67 |
0.88 |
0.92 |
1.21 |
1.91 |
0.955 |
|
|
0.27 |
27SGQ090 |
0.67 |
0.88 |
0.89 |
1.18 |
1.91 |
0.960 |
|
27SGQ095 |
0.69 |
0.91 |
0.92 |
1.22 |
1.91 |
0.960 |
|
|
27SGQ100 |
0.68 |
0.91 |
0.95 |
1.23 |
1.91 |
0.960 |
|
|
27SGQ110 |
0.70 |
0.93 |
1.00 |
1.27 |
1.90 |
0.960 |
|
|
0.30 |
30SGQ095 |
0.72 |
0.96 |
0.95 |
1.26 |
1.92 |
0.965 |
|
30SGQ100 |
0.73 |
0.98 |
0.97 |
1.29 |
1.92 |
0.965 |
|
|
30SGQ105 |
0.74 |
0.99 |
1.00 |
1.30 |
1.91 |
0.965 |
|
|
30SGQ120 |
0.77 |
0.99 |
1.04 |
1.36 |
1.91 |
0.965 |
|
Table 2 - Typical Electromagnetic Property of Domain Refined Type
|
Nominal Thickness (mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|||
|
P1.5/50 a |
P1.5/60 a |
P1.7/50 |
P1.7/50 b |
50Hz / 60Hz |
|||
|
J800 |
|||||||
|
0.18 |
18SGQD060 |
0.44 |
0.58 |
0.59 |
0.77 |
1.91 |
0.955 |
|
18SGQD065 |
0.46 |
0.62 |
0.64 |
0.83 |
1.91 |
0.955 |
|
|
18SGQD070 |
0.49 |
0.65 |
0.68 |
0.90 |
1.90 |
0.955 |
|
|
18SGQD075 |
0.52 |
0.67 |
0.73 |
0.93 |
1.88 |
0.955 |
|
|
0.20 |
20SGQD060 |
0.44 |
0.59 |
0.59 |
0.75 |
1.92 |
0.955 |
|
20SGQD065 |
0.48 |
0.63 |
0.64 |
0.84 |
1.92 |
0.955 |
|
|
20SGQD070 |
0.50 |
0.66 |
0.68 |
0.89 |
1.91 |
0.955 |
|
|
20SGQD075 |
0.52 |
0.69 |
0.72 |
0.95 |
1.91 |
0.955 |
|
|
20SGQD080 |
0.55 |
0.72 |
0.77 |
0.99 |
1.89 |
0.955 |
|
|
0.23 |
23SGQD070 |
0.53 |
0.71 |
0.70 |
0.93 |
1.92 |
0.955 |
|
23SGQD075 |
0.55 |
0.73 |
0.73 |
0.97 |
1.92 |
0.955 |
|
|
23SGQD080 |
0.56 |
0.75 |
0.75 |
1.01 |
1.92 |
0.955 |
|
|
23SGQD085 |
0.59 |
0.78 |
0.80 |
1.04 |
1.91 |
0.955 |
|
|
23SGQD090 |
0.62 |
0.81 |
0.85 |
1.11 |
1.90 |
0.955 |
|
|
0.27 |
27SGQD080 |
0.61 |
0.80 |
0.80 |
1.06 |
1.91 |
0.960 |
|
27SGQD085 |
0.62 |
0.82 |
0.83 |
1.10 |
1.91 |
0.960 |
|
|
27SGQD090 |
0.62 |
0.84 |
0.85 |
1.12 |
1.91 |
0.960 |
|
|
27SGQD095 |
0.64 |
0.87 |
0.90 |
1.16 |
1.90 |
0.960 |
|
|
0.30 |
30SGQD090 |
0.67 |
0.90 |
0.90 |
1.19 |
1.91 |
0.965 |
|
30SGQD095 |
0.69 |
0.92 |
0.91 |
1.22 |
1.91 |
0.965 |
|
|
30SGQD0100 |
0.71 |
0.92 |
0.95 |
1.23 |
1.90 |
0.965 |
|
|
30SGQD0105 |
0.73 |
0.97 |
0.98 |
1.28 |
1.89 |
0.965 |
|
Table 3 - Typical Electromagnetic Property of Low noise Type
|
Nominal Thickness (mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|||
|
P1.5/50 a |
P1.5/60 a |
P1.7/50 |
P1.7/50 b |
50Hz / 60Hz |
|||
|
J800 |
|||||||
|
0.20 |
20SQGD070LN |
0.50 |
0.66 |
0.68 |
0.89 |
1.91 |
0.955 |
|
20SQGD075LN |
0.52 |
0.69 |
0.72 |
0.95 |
1.91 |
0.955 |
|
|
0.23 |
23SQGD080LN |
0.56 |
0.75 |
0.75 |
1.01 |
1.93 |
0.955 |
|
23SQGD085LN |
0.59 |
0.78 |
0.80 |
1.04 |
1.92 |
0.955 |
|
|
0.27 |
27SQGD085LN |
0.62 |
0.82 |
0.83 |
1.10 |
1.91 |
0.960 |
|
27SQGD090LN |
0.62 |
0.84 |
0.85 |
1.12 |
1.91 |
0.960 |
|
|
0.30 |
30SQGD100LN |
0.71 |
0.93 |
0.95 |
1.23 |
1.91 |
0.965 |
|
Note: Noise series is 2-4db(A) lower than that of conventional steel strip. |
|||||||
Table 4 - Typical Electromagnetic Property of Low Excitation Type
|
Nominal Thickness (mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|||
|
P1.5/50 a |
P1.5/60 a |
P1.7/50 |
P1.7/50 b |
50Hz / 60Hz |
|||
|
J800 |
|||||||
|
0.20 |
20SQGD070LS |
0.50 |
0.66 |
0.68 |
0.89 |
1.91 |
0.955 |
|
20SQGD075LS |
0.52 |
0.69 |
0.72 |
0.95 |
1.91 |
0.955 |
|
|
0.23 |
23SQGD080LS |
0.57 |
0.76 |
0.76 |
1.02 |
1.92 |
0.955 |
|
23SQGD085LS |
0.59 |
0.78 |
0.80 |
1.04 |
1.91 |
0.955 |
|
|
Note: The exciting power is 20% lower than that of conventional steel strip. |
|||||||
Table 5 - Typical Electromagnetic Property of No Substrate Type
|
Nominal Thickness (mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|||
|
P1.5/50 a |
P1.5/60 a |
P1.7/50 |
P1.7/50 b |
50Hz / 60Hz |
|||
|
J800 |
|||||||
|
0.27 |
27SQG120NG |
0.93 |
1.21 |
1.20 |
1.57 |
1.90 |
0.960 |
|
0.30 |
30SQG130NG |
0.96 |
1.23 |
1.30 |
1.69 |
1.90 |
0.960 |
Table 6 - Typical Electromagnetic Property of Intermediate Frequency Type
|
Nominal Thickness (mm) |
Grade |
Maximum total loss （W/kg） |
Minimum magnetic polarization intensity J /T |
Min Lamination factor |
|
|
P1.5/50 a |
P1.5/60 a |
50Hz / 60Hz |
|||
|
J800 |
|||||
|
0.15 |
15SQF1300 |
/ |
13 |
1.75 |
0.940 |
|
15SQF1600 |
/ |
15 |
1.75 |
0.940 |
|
|
0.18 |
18SQF1700 |
/ |
16 |
1.75 |
0.950 |
|
0.20 |
20SQF760 |
7.5 |
/ |
1.80 |
0.950 |

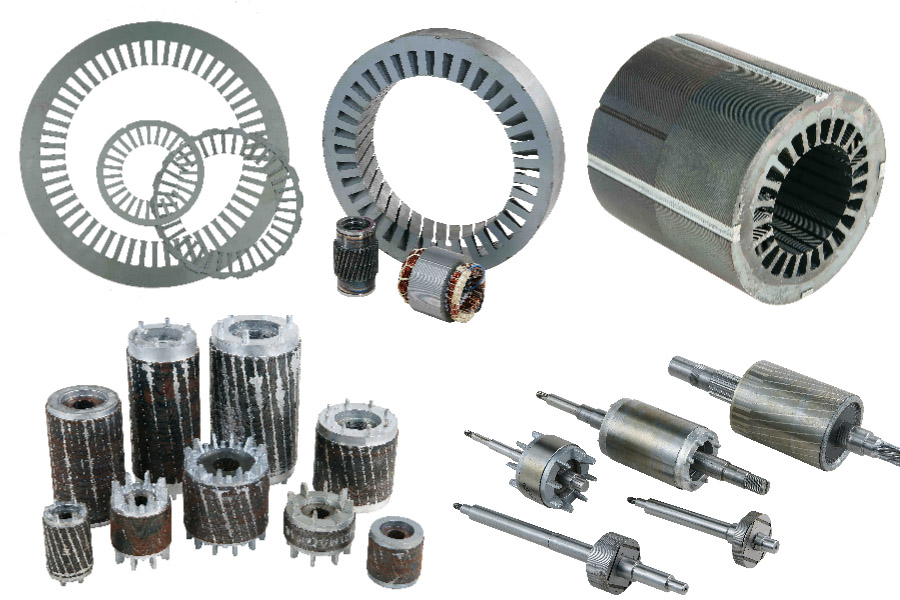

Application fields
|
Varieties |
High magnetic induction type |
Domain refined type |
|
Large transformers |
* |
* |
|
Medium and small transformers |
* |
* |
|
Distributing transformers |
* |
* |
|
Large motors |
* |
|
|
Medium motors |
|
|
|
Voltage regulator |
* |
|
|
Reactor and magnetic amplifiers |
* |
* |
|
IF transformer |
* |
|
|
Mutual instructors |
* |
|
|
transformer |
* |
|
Packing
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Shunge offers customers cost-effective wholesale prices for high-quality cold-rolled grain-oriented silicon steel, which finds extensive use in various transformer manufacturing industries. With its notable advantages of high dimensional accuracy and superior magnetic induction, this prime quality CRGO silicon steel is highly sought after by customers.
Address : Room 201, West Building A, Dawei Logistics, Xihai Industrial Zone, Lecong Town, Shunde District, Foshan City
You may unsubscribe at any moment. For that purpose, please find our contact info in the legal notice.
IPv6 network supportedWe will contact you as soon as possible
Hi! Click one of our members below to chat on
en
fr
es
