Product Details

EI lamination is mainly made of silicon steel with good permeability and conductivity. Normally are CRNGO steel, steel grades, thickness are optional, depends on the usage. EI stamping sheets could be classified into 2 types, single phase and 3 phases. Suitable for making home appliance motors and commercial large transformers.

Silicon Steel Sheet Size Charts

Part 1 - Single phase EI sheet

No.	Product name	Total height(mm)	Total length(mm)	Foot length(mm)
1	EI-28	25	28	21
2	EI-30	25	30	20
3	EI-35	29.5	35	24.5
4	EI-38.4	32	38.4	25.6
5	EI-41	33	41	27
6	EI-41-2H/4H	33	41	27
7	EI-42-4H	35	42	28
8	EI-48	40	48	32
9	EI-48-2H/4H	40	48	32
10	EI-54	45	54	36
11	EI-57	47.5	57	38
12	EI-57-2H/4H	47.5	57	38
13	EI-60-4H	50	60	40
14	EI-66	55	66	44
15	EI-66-2H/4H	55	66	44
16	EI-75-4H	62.5	75	50
17	EI-76.2-4H	63.5	76.2	50.8
18	EI-78-4H	65	78	52
19	EI-84-4H	70	84	56
20	EI-85.8-4H	71.5	85.8	57.2
21	EI-96-4H	80	96	64
22	EI-101-4H	82.5	101	66.5
23	EI-114-4H	95	114	76
24	EI-105-4H	87.5	105	70
25	EI-120-4H	100	120	80
26	EI-133.2-4H	111	133.2	88.8
27	EI-150-4H	125	150	100
28	EI-152.4-4H	127	152.4	101.6
29	EI-162-4H	135	162	108
30	EI-168-4H	140	168	112
31	EI-180-4H	150	180	120
32	EI-190.5-4H	158.75	190.5	127
33	EI-228.6-4H	190.5	228.6	152.4
Remark: 1. Pattern and naming: no hole(EI-XX); Single Middle-punched(EI-XX-2H); 4 holes(EI-XX-4H) 2. Tolerance: ±10mm.

Part 2 - three phases EI sheet

No.	Product name	Total height(mm)	Total length(mm)	Foot length(mm)
1	EI-three phases-30CORE-150	135	150	105
2	EI-three phases-38.1CORE-190.5	171.45	190.5	133.35
3	EI-three phases-45.8CORE-228.6	205.7	228.6	160
4	EI-three phases-50CORE-250	250	250	200
5	EI-three phases-60CORE-300	300	300	240
Remark: 1. Pattern and naming: Unpunched(EI-XX) 2. Tolerance: ±10mm.

EI lamination punching line

Annealing furnace

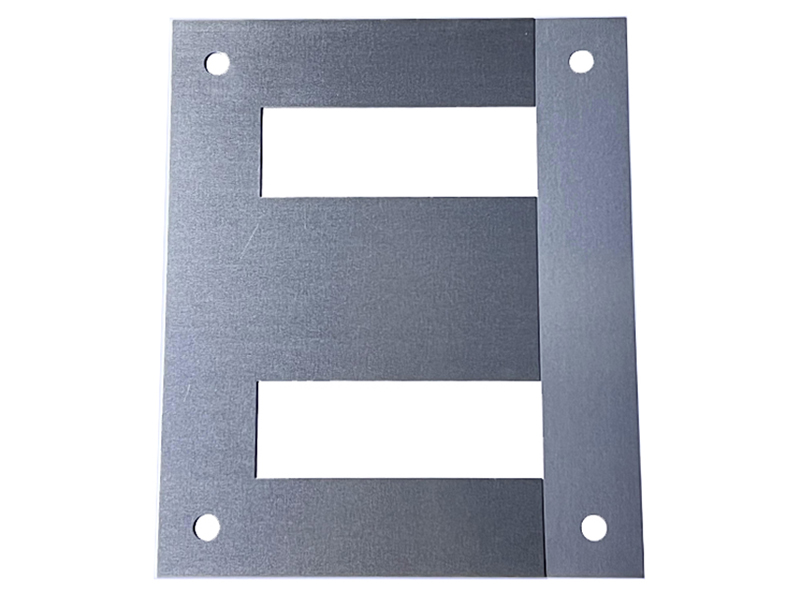

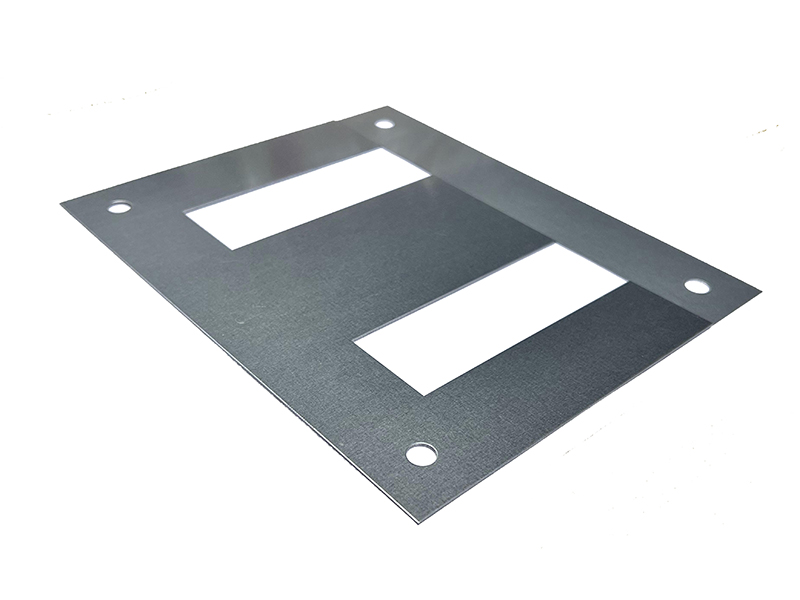

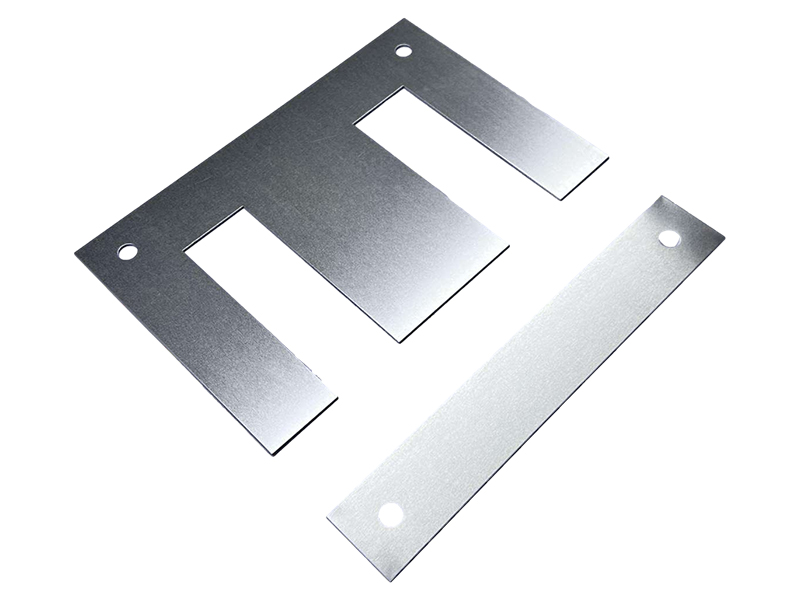

Final product - EI silicon steel sheet

Tested and certified by RoHS
