Engineering Overview: Axial Flux Stator Cores for Next-Generation Home Appliances

Shunge Steel manufactures custom tape-wound axial flux motor stator cores specifically optimized for smart home appliances, direct-drive (DD) washing machines, energy-saving BLDC ceiling fans, HVAC air handlers, and high-speed cordless vacuum cleaners. In modern consumer appliances, end-users demand whisper-quiet operation, ultra-low vibration, premium energy efficiency ratings (IE4/IE5 / Ecodesign compliance), and ultra-slim product aesthetics.

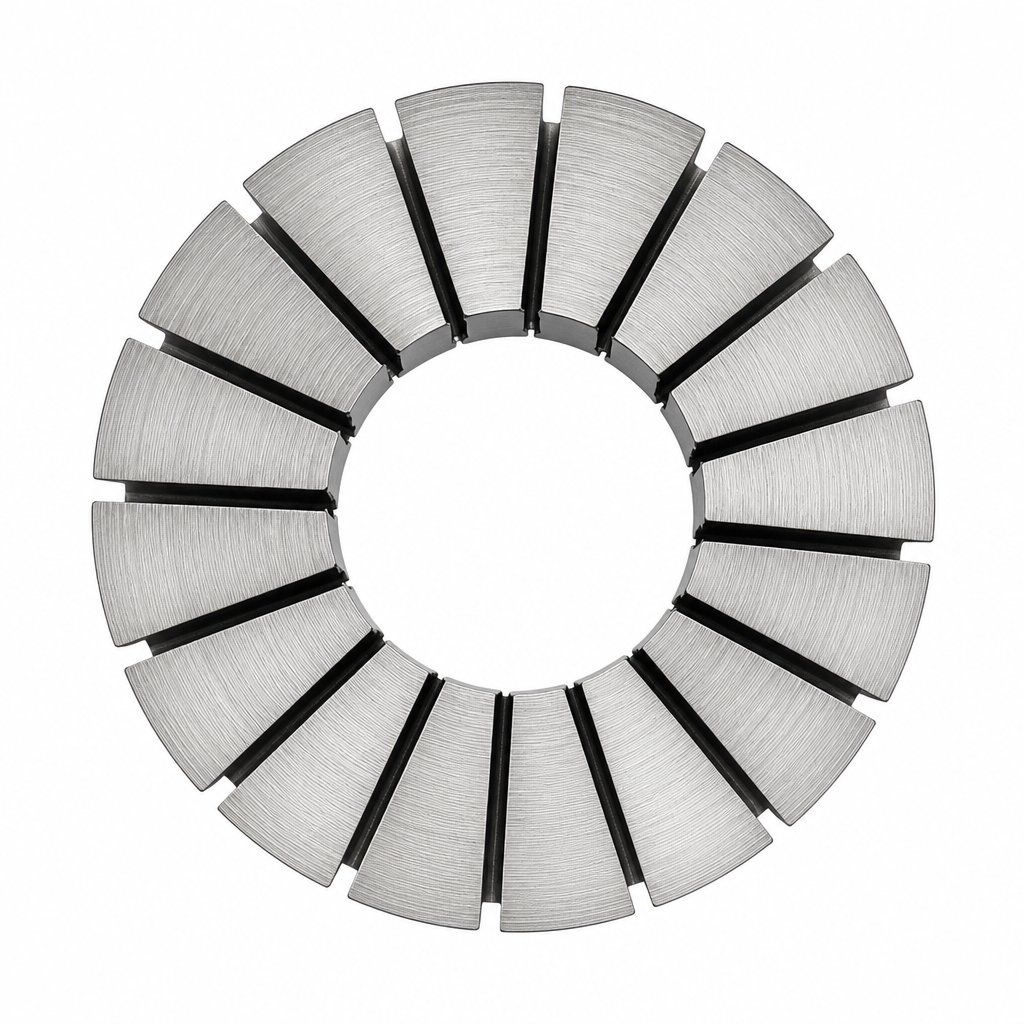

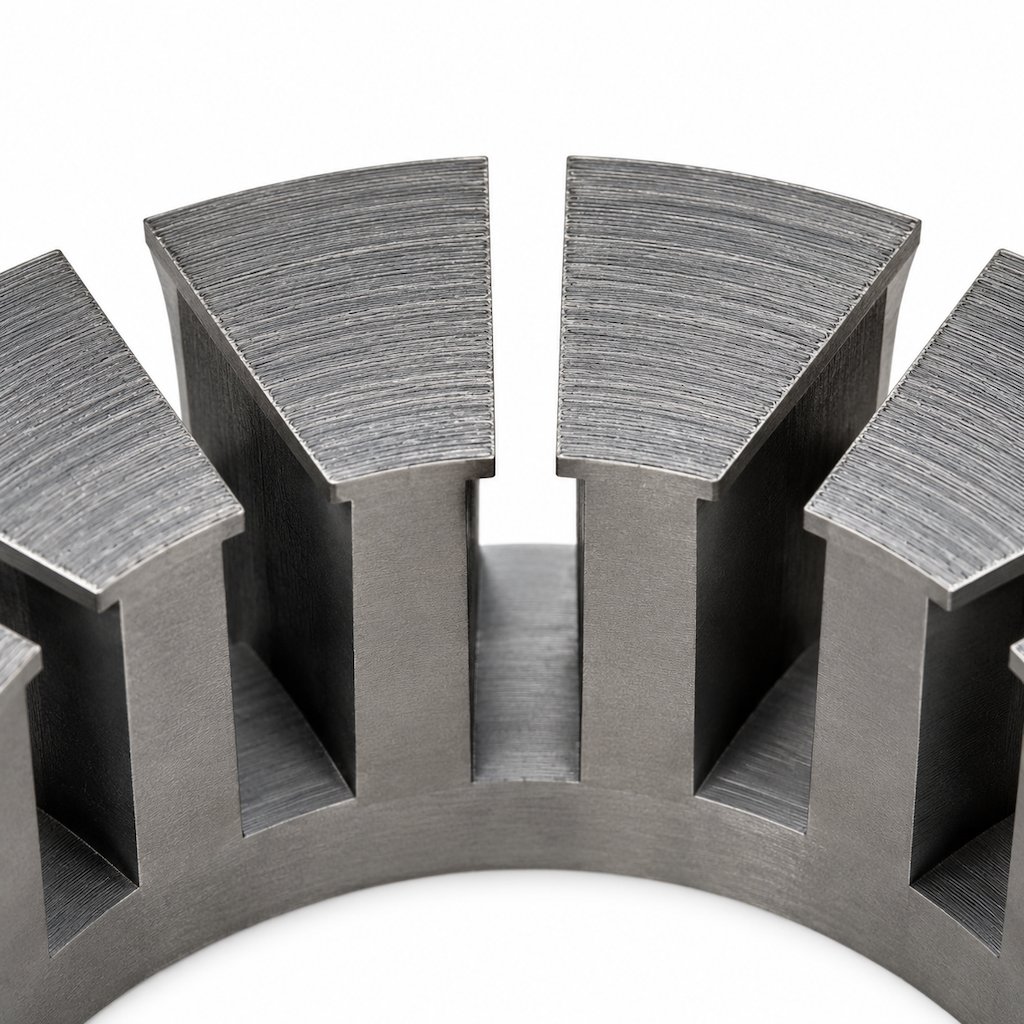

By continuously winding high-grade thin-gauge electrical silicon steel strip into a seamless circular disc and forming 18 precision radial slot teeth via CNC laser cutting, we provide appliance motor manufacturers with superior magnetic symmetry, zero electromagnetic whining, and high torque density—without the costly tooling investments associated with traditional radial stamping dies.

Key Technical Advantages for Smart Home Appliances

• Whisper-Quiet Operation & Minimal Vibration: The seamless concentric wound magnetic circuit eliminates microscopic air-gap asymmetries typical of radial stamped laminations, drastically suppressing cogging torque and motor harmonic noise for bedroom-quiet appliance performance.
• Ultra-Flat Pancake Profile for Slim Appliance Design: With an axial depth reduction of up to 50% compared to conventional radial motors, our axial flux cores allow washing machine drums to expand within standard cabinet depths and enable ultra-slim, designer BLDC ceiling fans.
• Superior Energy Efficiency & Low Thermal Rise: Premium thin-gauge electrical steel (0.20 mm to 0.35 mm) keeps high-frequency eddy current losses to a minimum during variable-speed inverter operation, lowering power consumption and extending appliance lifespan.
• High Direct-Drive Starting Torque: Delivers intense continuous torque at low speeds, enabling beltless direct drive for washing machines, eliminating belt wear, pulley losses, and mechanical maintenance.
• Zero Tooling Investment for Rapid Appliance Prototyping: Customize inner/outer diameters, tooth width, and stack height directly through CNC laser programming, speeding up time-to-market for new appliance product lines.

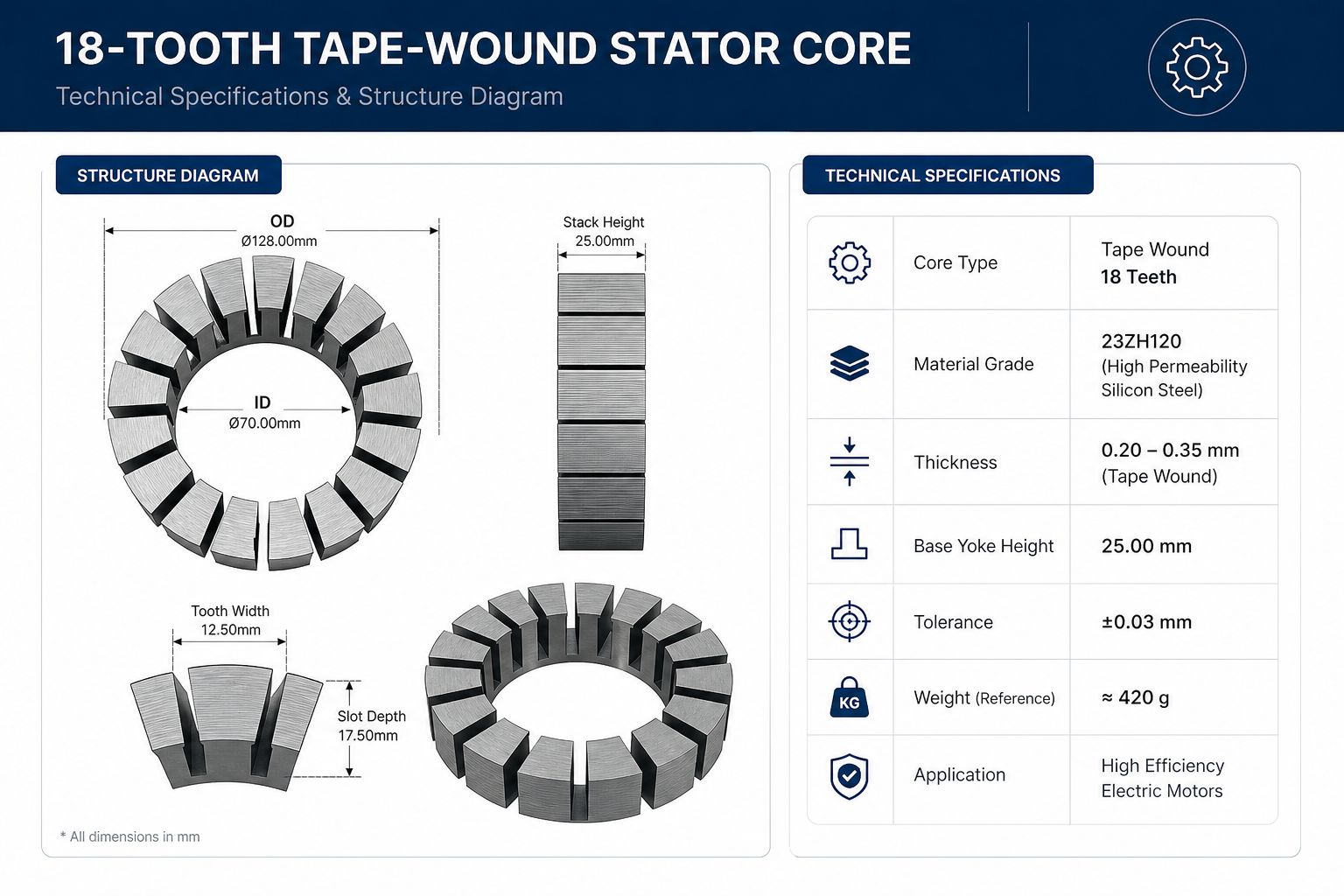

Technical Specifications & Parameter Matrix

Smart Home Appliance & Domestic Motion Applications

Our custom wound stator cores power quiet, highly reliable motion across consumer and light commercial appliances:

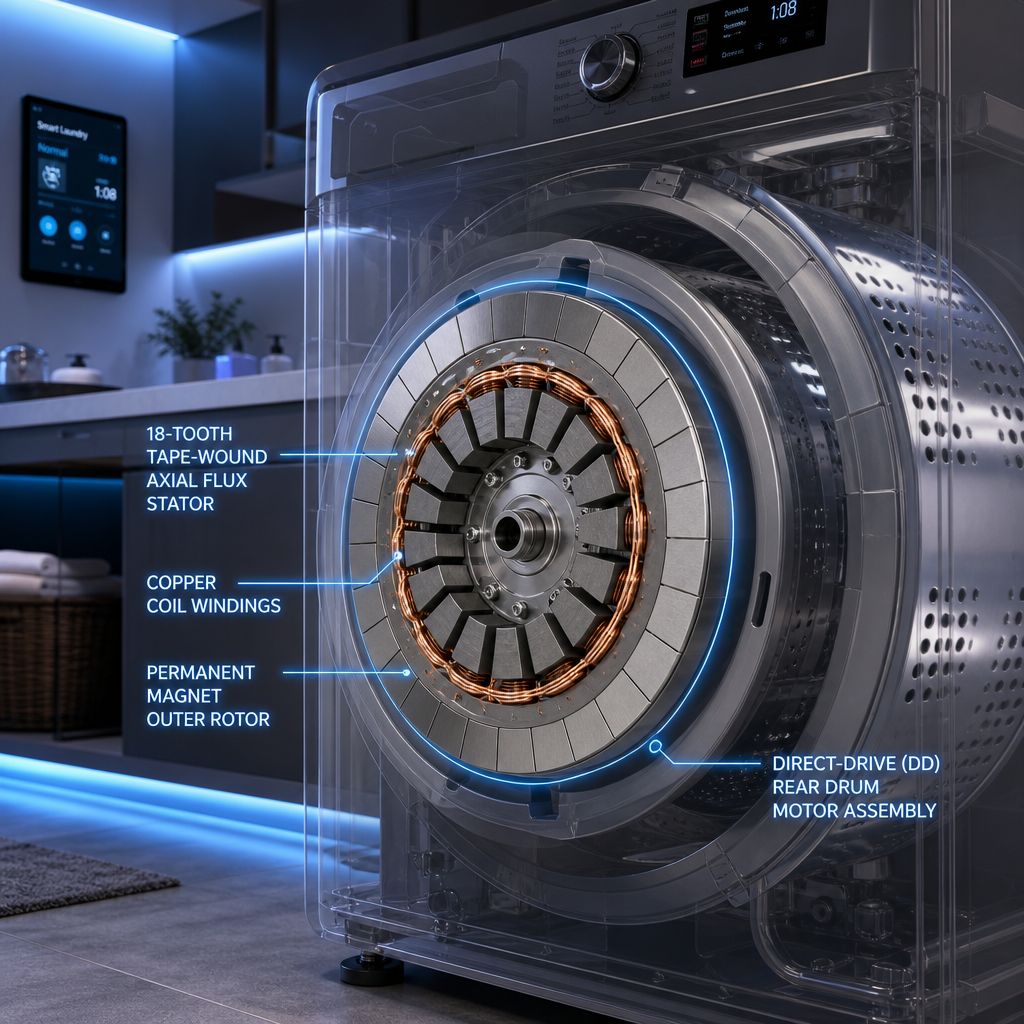

• Direct-Drive (DD) Washing Machines & Dryers: Mounts flat against the wash tub rear wall for quiet, vibration-free direct drum rotation and high-speed spin extraction.
• BLDC Ceiling Fans & Smart Ventilation: Ultra-slim pancake motor design creates sleek, decorative fans with silent multi-speed airflow control.
• Kitchen Range Hoods & Air Purifiers: High-efficiency variable speed blower drive provides maximum CFM airflow with whisper-quiet acoustic ratings.
• High-Speed Vacuum Cleaners & Hair Dryers: Compact axial geometry allows compact packaging in cordless handheld consumer electronics.

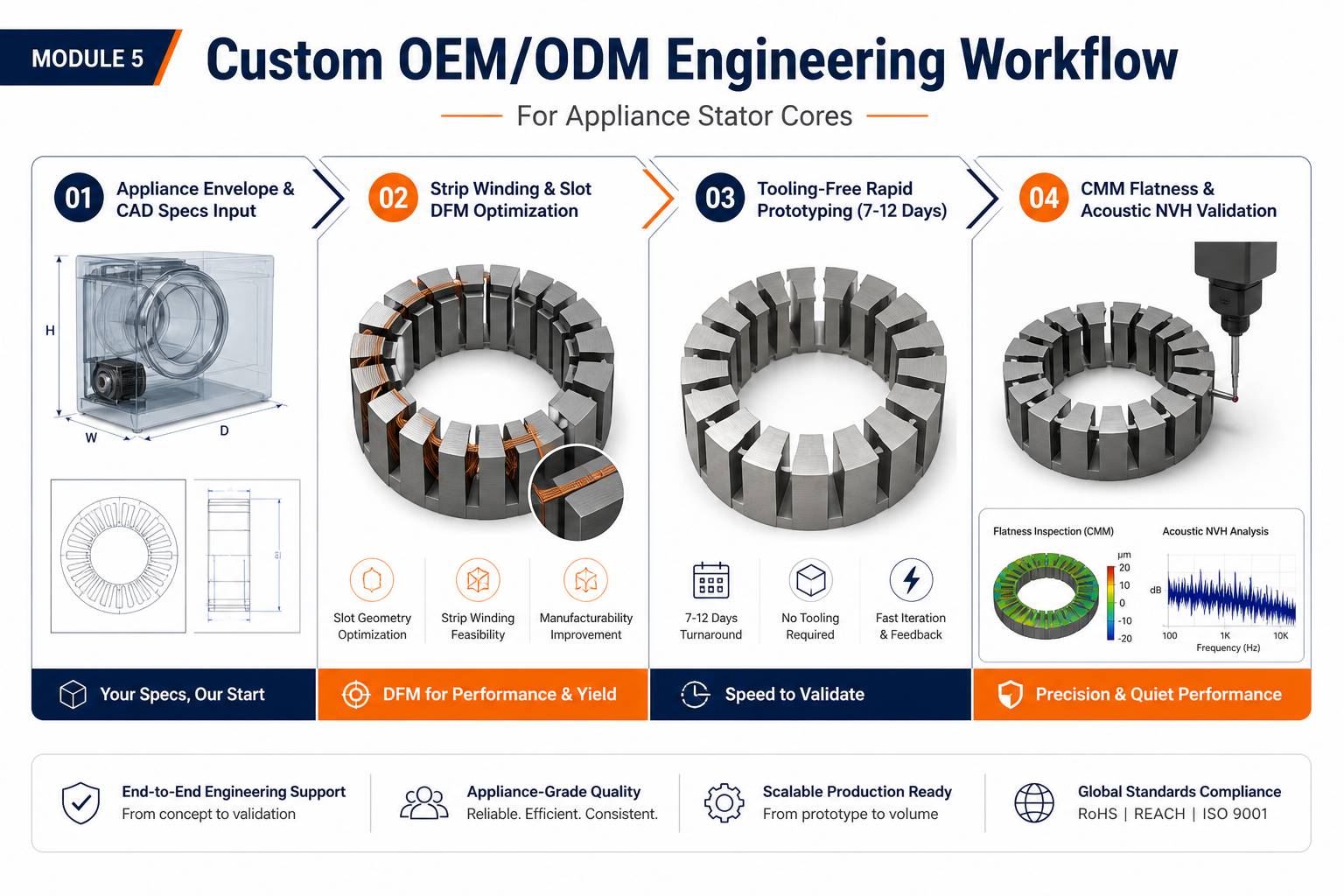

Customization & OEM/ODM Engineering Workflow

We provide full-service co-engineering for domestic and international appliance brands:

1. Design & Envelope Input: Provide your motor power target (W), RPM range, voltage, and 2D/3D CAD drawings (STEP, DWG, DXF).
2. DFM & Magnetic Optimization: Our engineering team conducts design-for-manufacturability analysis on strip winding, slot-fill ratio, and acoustic reduction.
3. Rapid Tooling-Free Prototyping: Prototype stator cores produced and dispatched within 7–12 working days without stamping tooling lead times.
4. Validation & Testing: Complete CMM inspection for concentricity, tooth profile precision, and core loss verification prior to mass production.

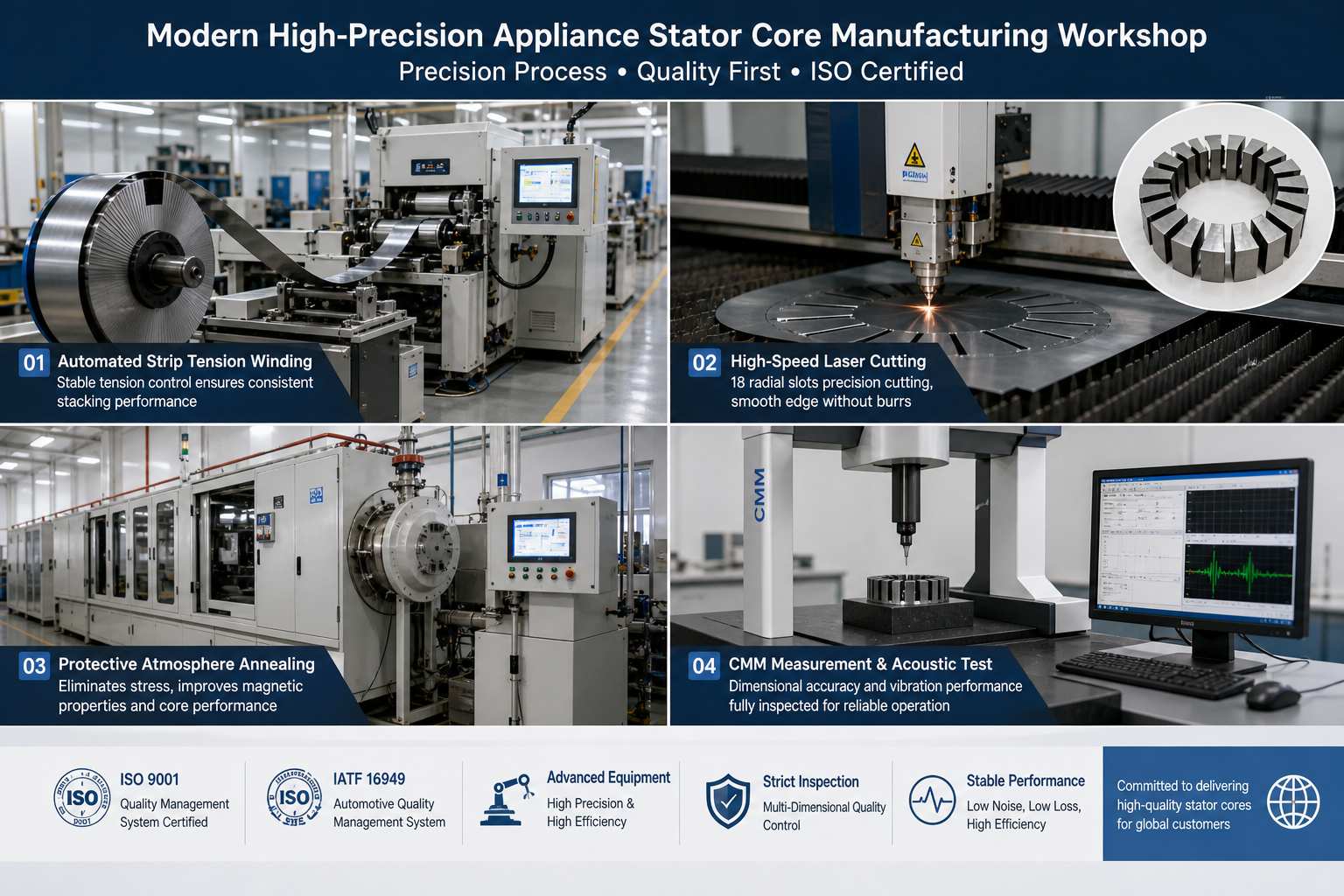

Precision Manufacturing & Quality Assurance

Shunge Steel applies strict quality control across every production stage to guarantee appliance-grade reliability:

• Automated Strip Tension Winding: Ensures tight, consistent layer-to-layer contact, preventing vibration-induced hum and core delamination.
• Burr-Free Laser Cutting: Inert-gas laser slotting produces smooth tooth sidewalls, protecting winding insulation during automated coil insertion.
• Protective Atmosphere Annealing: Relieves mechanical cutting stress, fully restoring high magnetic permeability and low electrical loss.
• Acoustic & Dimensional Verification: CMM verification for axial flatness and slot symmetry to guarantee balanced magnetic pull and quiet operation.

Packaging & Global Logistics Protection

To ensure high-volume appliance stator cores arrive in flawless condition:

• VCI Anti-Corrosion Sealing: Coated with protective anti-rust compound and vacuum-sealed in VCI vapor corrosion inhibitor barrier bags.
• Shockproof Custom EPE Inserts: Custom-molded foam compartments protect laser-cut stator teeth during handling and transport.
• Export Standard Cartons & Pallets: Packed in heavy-duty corrugated cartons on export pallets or fumigation-free solid wooden crates.

Frequently Asked Questions (FAQ)

Q1: How does an axial flux stator core reduce noise and vibration in home appliances?
A: Axial flux stator cores wound continuously from electrical steel strip provide superior magnetic circular symmetry compared to stamped radial laminations. This eliminates uneven magnetic pull across the air gap, significantly suppressing cogging torque, torque ripple, and high-frequency electromagnetic whining.

Q2: Can this core be used for direct-drive washing machine motors?
A: Yes. The pancake form factor is ideally suited for direct-drive washing machines, allowing the motor to be bolted directly to the rear of the wash tub. This eliminates drive belts, reduces maintenance, and frees up internal space for larger drum capacities.

Q3: What electrical steel thickness is recommended for BLDC ceiling fan motors?
A: For standard ceiling fans operating between 50 and 300 RPM, 0.35 mm or 0.50 mm electrical steel provides optimal electromagnetic performance and cost efficiency. For high-speed inverter appliances (like vacuum cleaners or hair dryers), thinner 0.20 mm or 0.27 mm silicon steel is recommended.

Q4: Do we need to pay for stamping molds for custom appliance prototypes?
A: No. All slot features and diameters are produced via CNC laser cutting. You can iterate and refine your appliance motor prototypes without tooling expenses or long mold fabrication delays.

Q5: What is the typical lead time for prototype appliance cores?
A: Prototype stator cores are typically manufactured, inspected, and shipped within 7 to 12 working days upon CAD drawing confirmation.
