Buthtub pump is a multifunctional type that is used in many areas and industries. Shunge has various types of plastic pump products for your options.
Product Origin :
ChinaShipping Port :
Shenzhen/GuangzhouPayment :

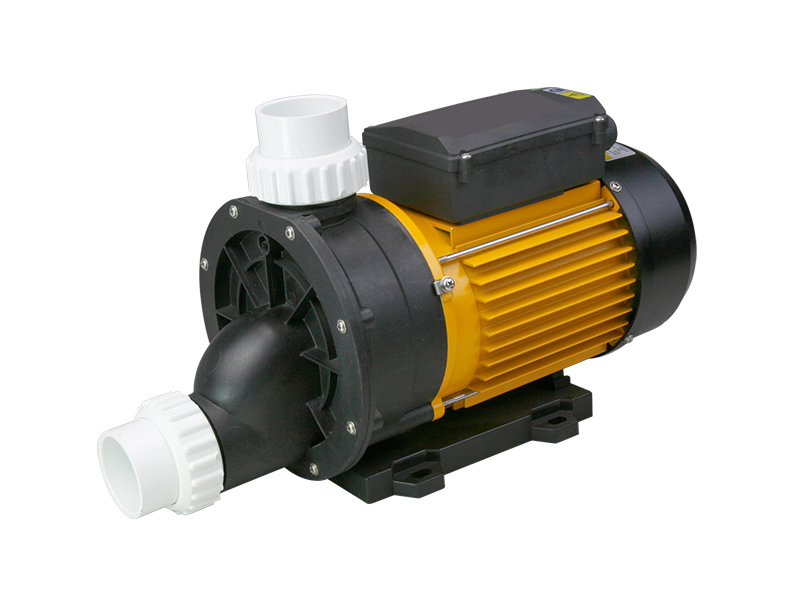

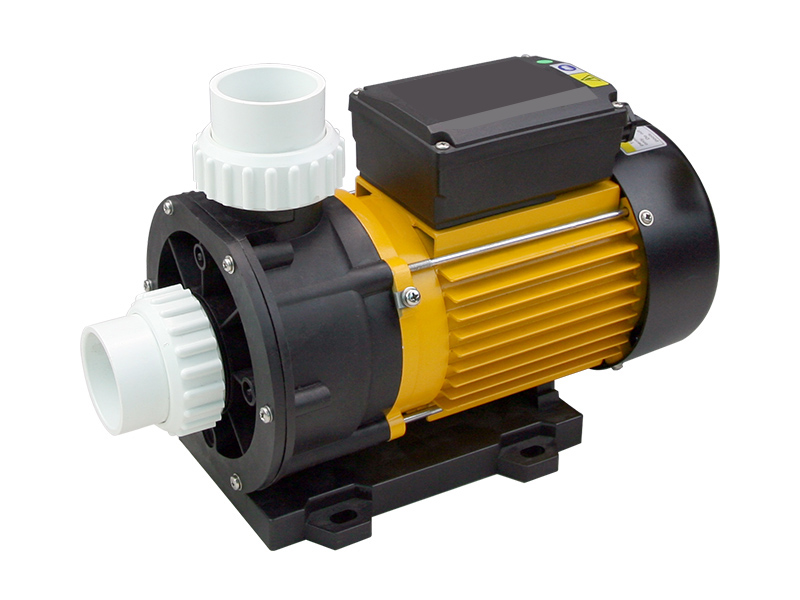

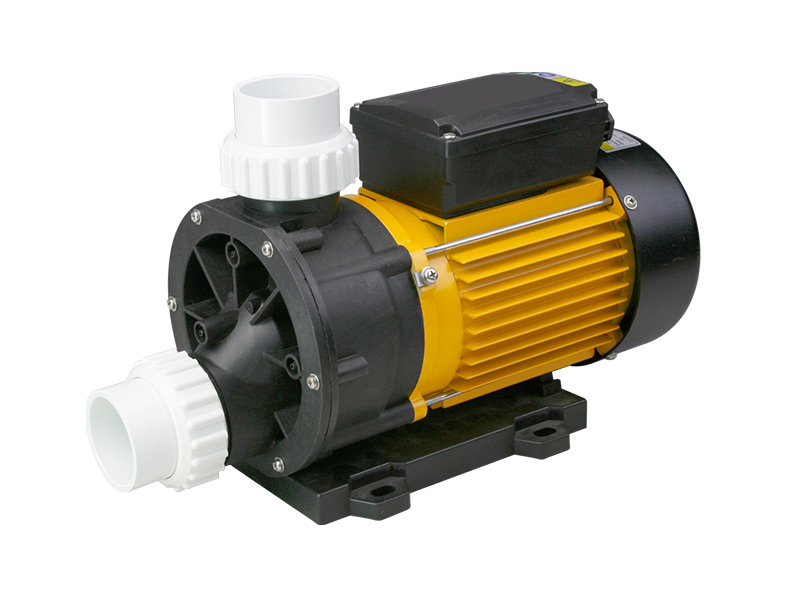

T/T, L/C at sightHydromassage Bathtub pump -- SGS

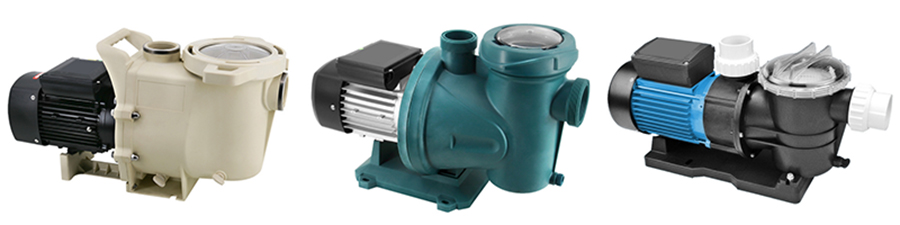

Shunge has abundant platstic pumps of market-leading quality, with international certifications and confident in covering most of customer's demands. You wouldn't wanna miss our hot selling types such as bathtub pumps, SPA pumps, circulating pumps, swimming pool pump,etc. To satisfy your need, we support customized colours and properties for your preference and warmly welcome OEM orders.
Our plastic electric pumps are manufactured from an excellent system:
silicon steel raw material provided by Shunge Steel
 |
 |
high lamination semi-finished product stator
professional automatic stator winding line
unmanned engine base assembling workshop
personalised colour paint spraying line
injection molding workshop
final finished to product -- various multi-functional plastic electric pumps
--- SGS series ---
 |
 |
 |
Certification
TUVRheinland CERTIFIED ID: 0000021818
CE
EN60335-A: 2012+A11
EN60335-2-41: 2003+A1+A2
EN60335-2-60: 2003+A1+A2+A11+A12
EN62233: 2008
ERP547/2012
SAA
AS/NZS60335.1
AS/NZS60335.2.41
E237565
2006-UL1795
Working conditions
Medium temperature: 5~50℃
Environmental temperature: <=50℃
Max. Working pressure: 0.3MPa
Technical parameter list FOR SGS SERIES
|
Model |
Qmax (l/min) |
Hmax (m) |
V/Hz |
Power(P1) |
(Amps) |
Fitting size (mm) |
G.W. (kg) |
Packing size (mm) |
|
|
kW |
HP |
||||||||
|
SGS35 |
150 |
7.5 |
220-240/50 |
0.25 |
0.35 |
1.6 |
48.5 or 50 |
5.8 |
350x180x250 |
|
SGS50 |
180 |
10 |
220-240/50 |
0.37 |
0.5 |
2.0 |
48.5 or 50 |
6.6 |
350x180x250 |
|
SGS75 |
250 |
12 |
220-240/50 |
0.55 |
0.75 |
3.2 |
48.5 or 50 |
7.8 |
380x180x250 |
|
SGS100 |
300 |
12 |
220-240/50 |
0.75 |
1.0 |
3.8 |
48.5 or 50 |
8.3 |
380x180x250 |
|
SGS120 |
335 |
13 |
220-240/50 |
0.9 |
1.2 |
4.6 |
48.5 or 50 |
9.0 |
380x180x250 |
|
SGS150 |
380 |
16 |
220-240/50 |
1.1 |
1.5 |
5.8 |
48.5 or 50 |
11.4 |
435x220x270 |
|
SGS200 |
450 |
16 |
220-240/50 |
1.5 |
2.0 |
7.0 |
48.5 or 50 |
12.7 |
435x220x270 |
|
230V/ 60Hz, 110V/ 60Hz, 110V/ 50Hz models are available on request |
|||||||||

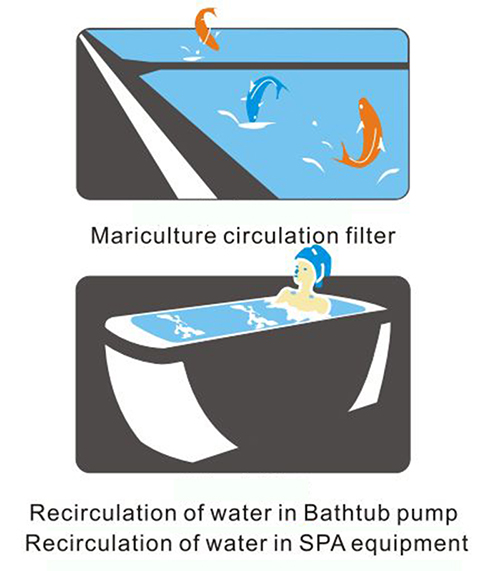

Application
Shunge has a huge range of stainless steel products for your options. Detail information including specification or usage will be appreciated which will speed up the quotation process.
Buthtub pump is a multifunctional type that is used in many areas and industries. Shunge has various types of plastic pump products for your options.
Buthtub pump is a multifunctional type that is used in many areas and industries. Shunge has various types of plastic pump products for your options.
Buthtub pump is a multifunctional type that is used in many areas and industries. Shunge has various types of plastic pump products for your options.
Buthtub pump is a multifunctional type that is used in many areas and industries. Shunge has various types of plastic pump products for your options.
Buthtub pump is a multifunctional type that is used in many areas and industries. Shunge has various types of plastic pump products for your options.
