SPA pump is popular for its wide usage in massage, home usage, mariculture and so on. Our SPA pump has been hot-selling in domestic market and competitive in this field.
Product Origin :
ChinaShipping Port :
Shenzhen/GuangzhouPayment :
T/T, L/C at sightSPA pump -- SGT

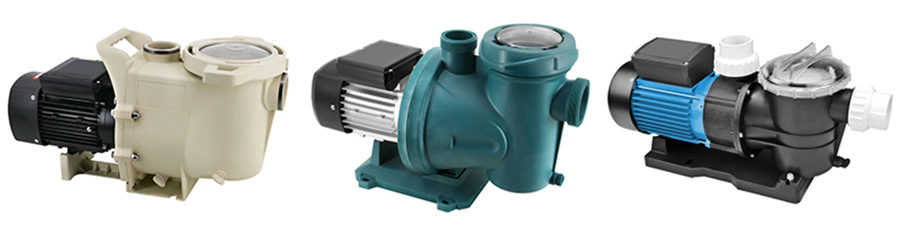

Shunge has abundant platstic pumps of market-leading quality, with international certifications and confident in covering most of customer's demands. You wouldn't wanna miss our hot selling types such as bathtub pumps, SPA pumps, circulating pumps, swimming pool pump,etc. To satisfy your need, we support customized colours and properties for your preference and warmly welcome OEM orders.
Our plastic electric pumps are manufactured from an excellent system:

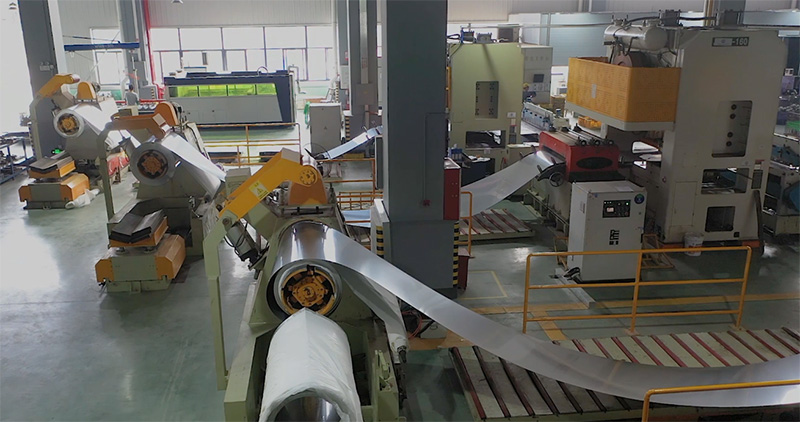

silicon steel raw material provided by Shunge Steel
 |
 |

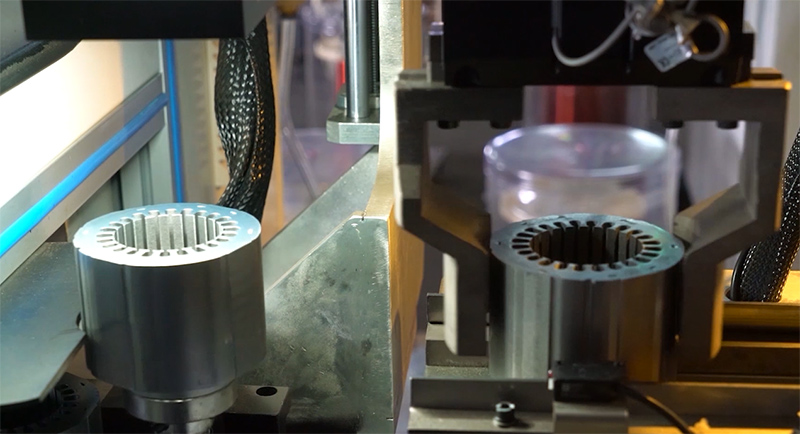

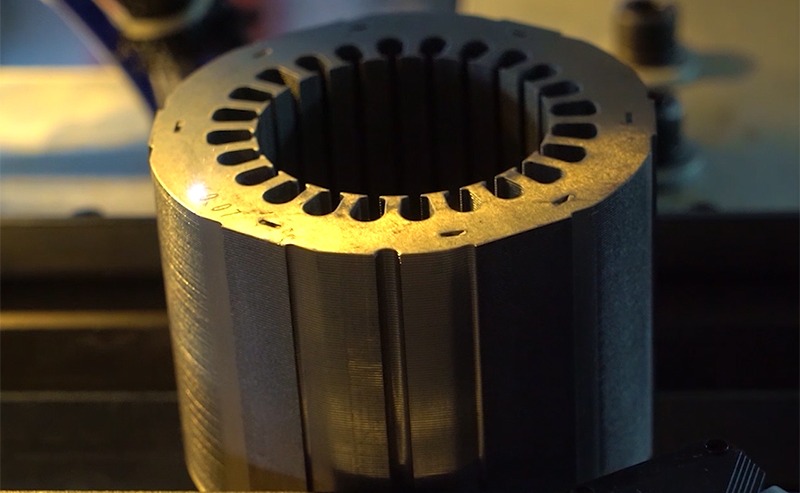

high lamination semi-finished product stator

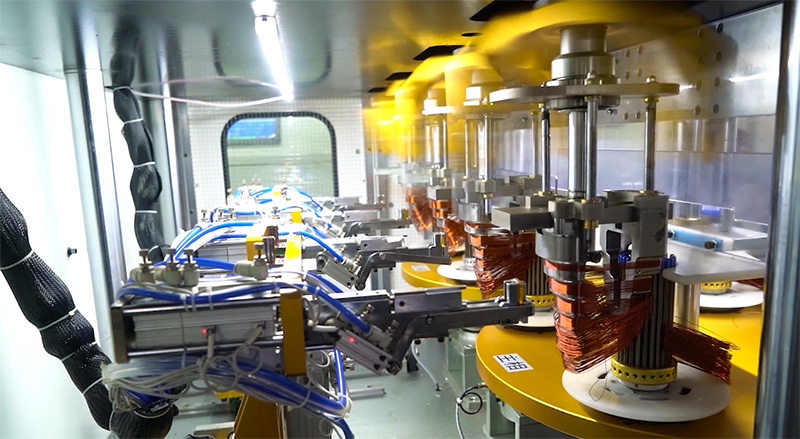

professional automatic stator winding line

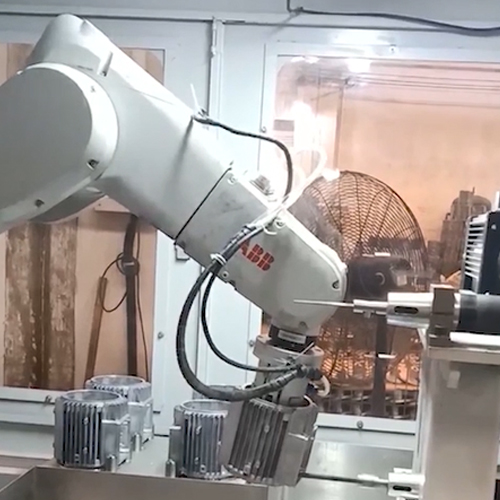

unmanned engine base assembling workshop

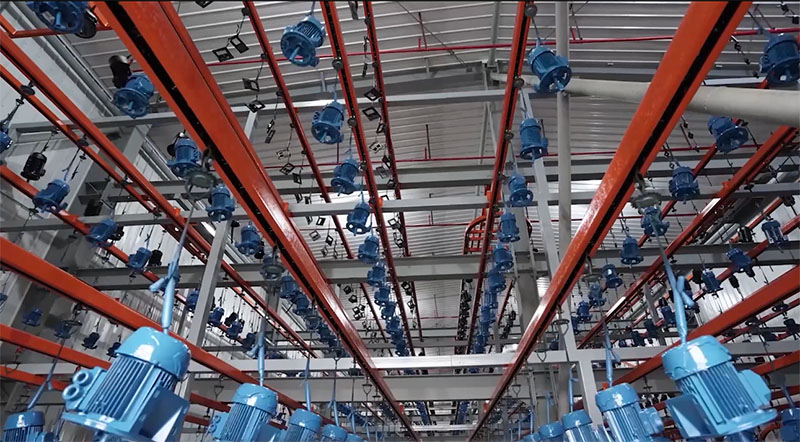

personalised colour paint spraying line

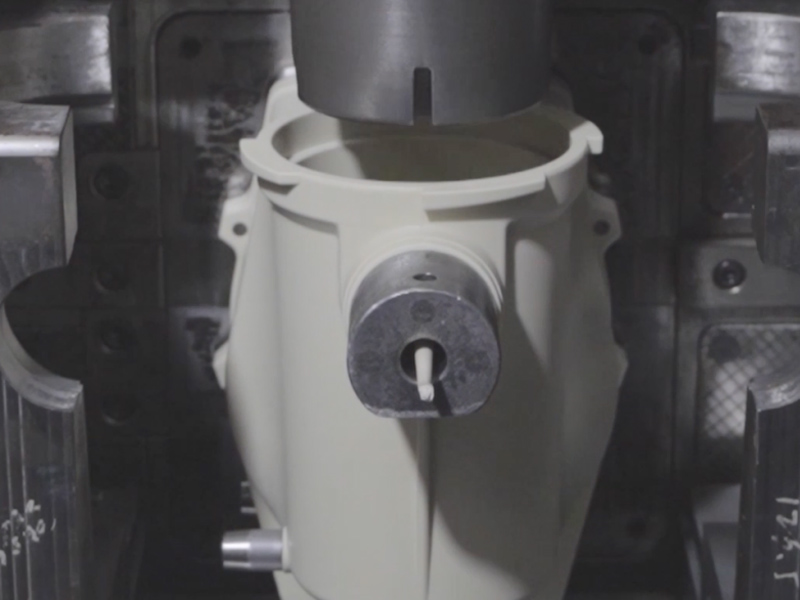

injection molding workshop
final finished to product -- various multi-functional plastic electric pumps
Other than strictly monitoring the production line, we also pay full attention to the quality control and quality test.

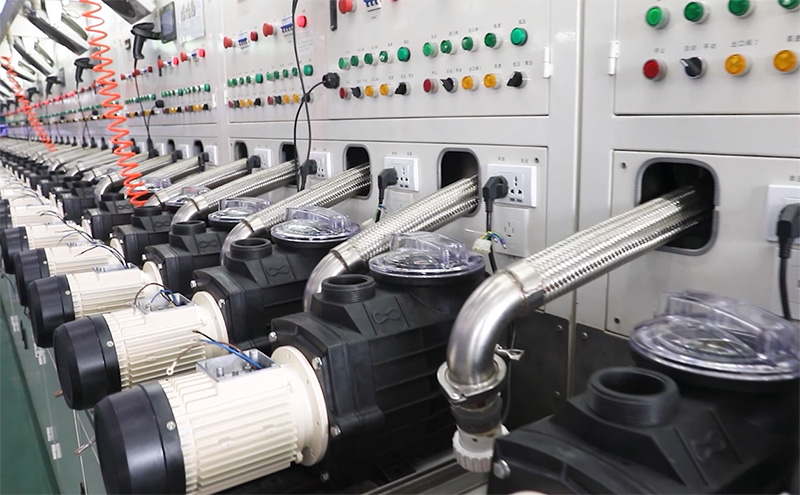

Water-injection quality test before packaging

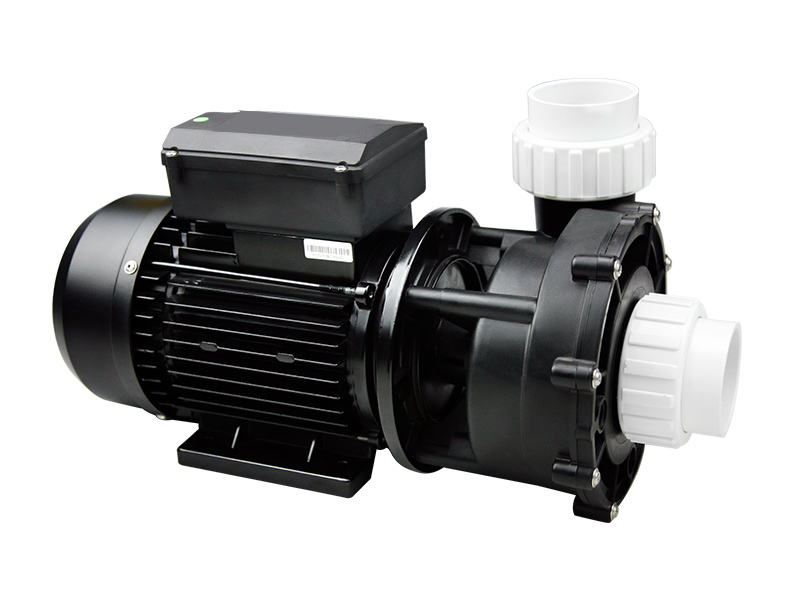

--- SGT series ---

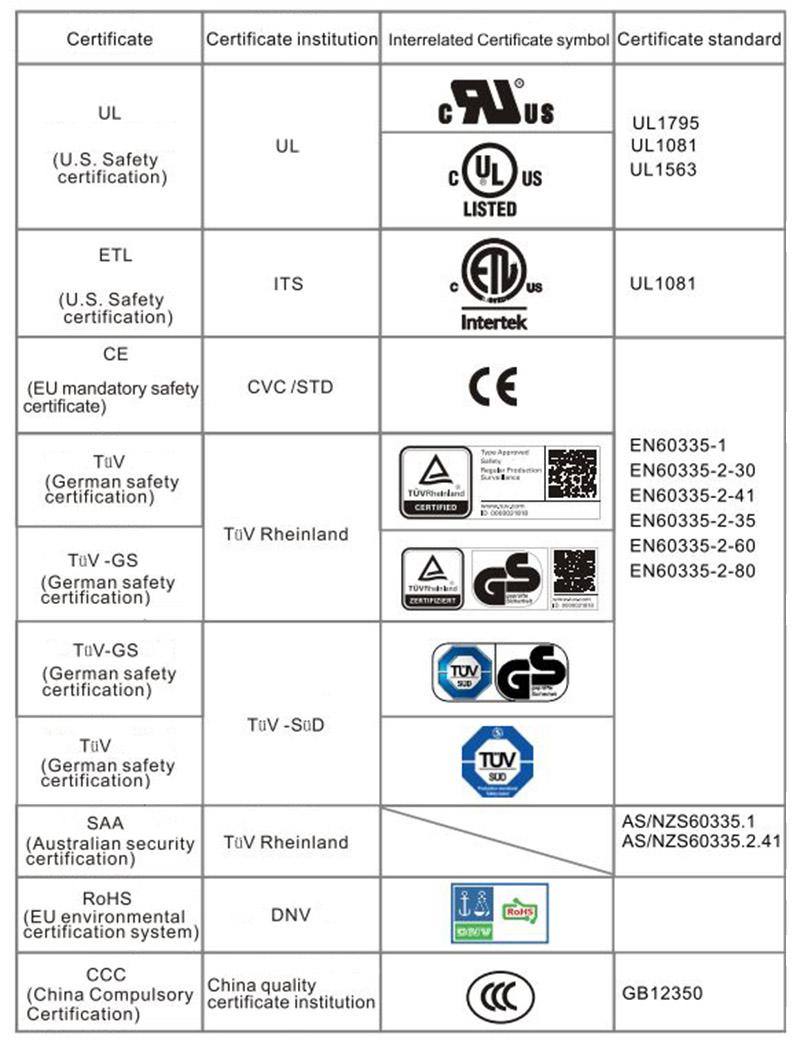

Certification:
TUVRheinland CERTIFIED ID: 2000000000
CE
EN60335-A: 2012+A11
EN60335-2-41: 2003+A1+A2
EN60335-2-60: 2003+A1+A2+A11+A12
EN62233: 2008
ERP547/2012
SAA
AS/NZS60335.1
AS/NZS60335.2.41
Working conditions
Medium temperature: 5~50℃
Environmental temperature: <=50℃
Max. Working pressure: 0.3MPa
Technical parameter list FOR SGT SERIES
|
Model |
Qmax (l/min) |
Hmax (m) |
V/Hz |
Power(P1) |
(Amps) |
Fitting size (mm) |
G.W. (kg) |
Packing size (mm) |
|
|
kW |
HP |
||||||||
|
SGT150 |
520 |
12 |
220-240/50 |
1.1 |
1.5 |
5.8 |
60.3 or 63 |
12 |
425x225x290 |
|
SGT200 |
535 |
13 |
220-240/50 |
1.5 |
2.0 |
7.0 |
60.3 or 63 |
12.7 |
425x225x290 |
|
SGT250 |
600 |
15.5 |
220-240/50 |
1.85 |
2.5 |
8.0 |
60.3 or 63 |
15.5 |
425x225x290 |
|
SGT300 |
635 |
17 |
220-240/50 |
2.2 |
3.0 |
10 |
60.3 or 63 |
16.3 |
425x225x290 |
|
230V/ 60Hz, 110V/ 60Hz, 110V/ 50Hz models are available on request |
|||||||||

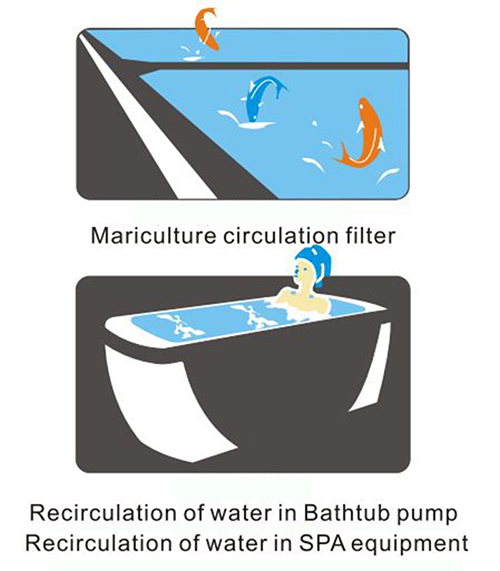

Application
Shunge has a huge range of stainless steel products for your options. Detail information including specification or usage will be appreciated which will speed up the quotation process.
SPA pump is popular for its wide usage in massage, home usage, mariculture and so on. Our SPA pump has been hot-selling in domestic market and competitive in this field.
SPA pump is popular for its wide usage in massage, home usage, mariculture and so on. Our SPA pump has been hot-selling in domestic market and competitive in this field.
SPA pump is popular for its wide usage in massage, home usage, mariculture and so on. Our SPA pump has been hot-selling in domestic market and competitive in this field.
SPA pump is popular for its wide usage in massage, home usage, mariculture and so on. Our SPA pump has been hot-selling in domestic market and competitive in this field.
SPA pump is popular for its wide usage in massage, home usage, mariculture and so on. Our SPA pump has been hot-selling in domestic market and competitive in this field.
