Servo motors are typically high-performance electric motors that are designed for precise control of position, speed, and torque. They are commonly used in industrial automation, robotics, and other applications where precision motion control is required.
MOQ :
1pcsPayment :
T/T LC at sightProduct Origin :
ChinaShipping Port :
Guangzhou/ ShenzhenA servo motor could provide precise and repeatable motion control. They are also highly efficient and can operate at high speeds and accelerations while maintaining high positional accuracy. Suitable for all types of applications of high-power servo motors:
Hydraulic type: electro-hydraulic servo injection molding machine, servo die-casting machine, shoe machine, vulcanizing machine, turntable, packing machine, bottle blowing machine, etc.

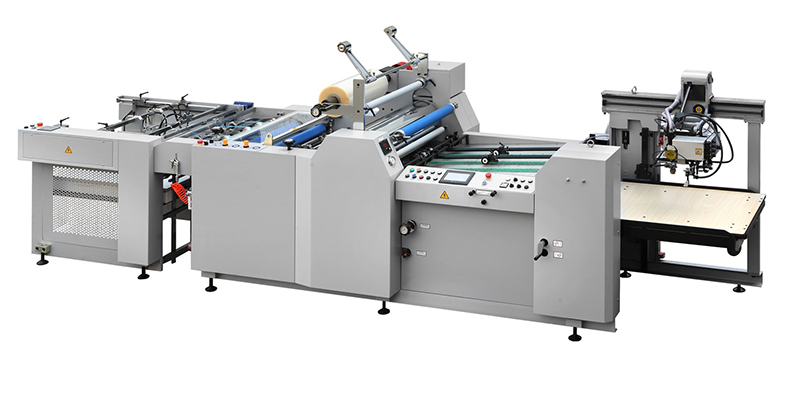

General servo type: bending machine, keel machine, hoop bending machine, laminating machine, shearing machine, plastic extruder, etc.
Product Introduction

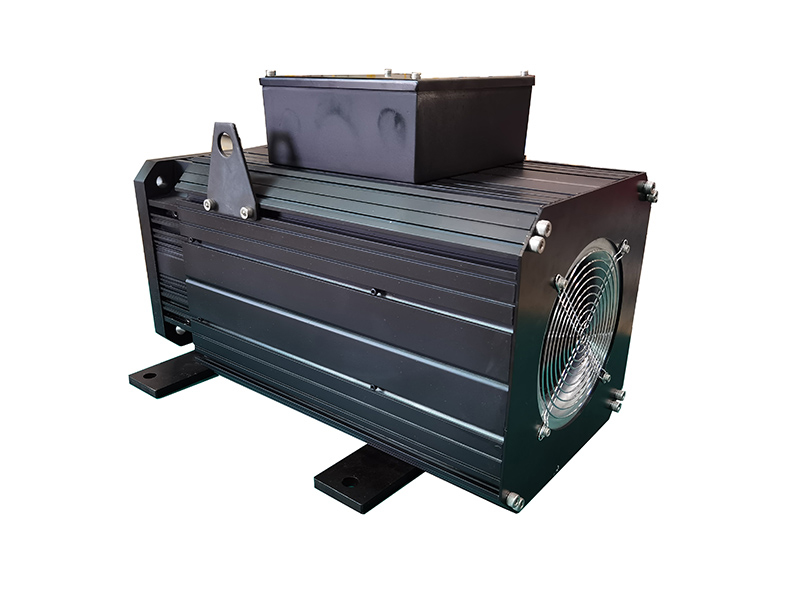

Shunrui servo motor has the characteristics of high efficiency, high response and high precision. It can be widely used in hydraulic servo motor or hydraulic equipment such as injection molding machines and hydraulic machines, and various general servo applications such as motion control.
Shunrui high torque servo motor parameters can also be customized according to customer requirements.
Product Advantages
Precision - Servo motors offer high precision and accuracy in positioning and speed control due to their closed-loop control system.
Speed and Torque - Servo motors can achieve higher speeds and torque than conventional motors of the same size.
Durability - Servo motors are designed to withstand heavy loads, high acceleration, and frequent starts and stops, making them highly durable.
Energy Efficiency - Servo motors operate efficiently, consuming less energy while providing high power output.
Control - The closed-loop control system of a servo motor offers improved control over the motor's operation, ensuring better performance and reliability.
Flexibility - Servo motors can be easily integrated with different types of control systems, making them versatile and flexible in their applications.

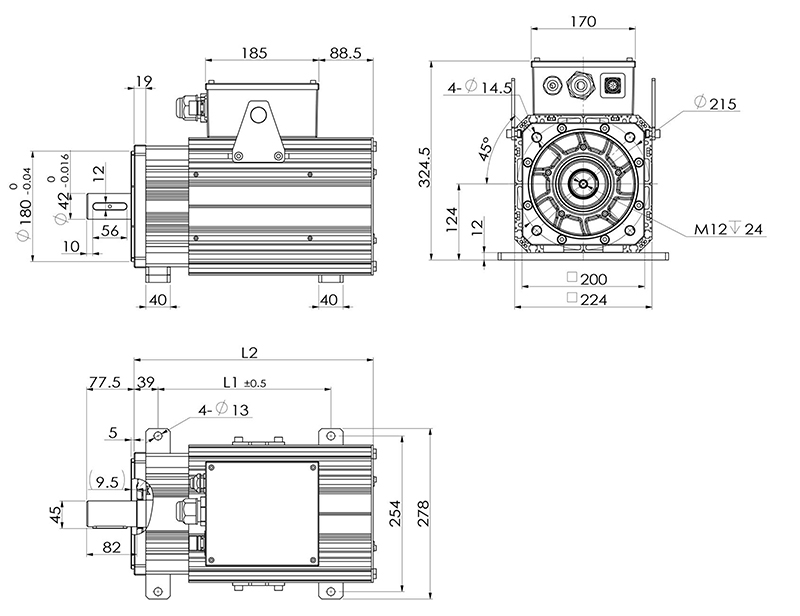

SR18B series - embedded servo motor
|
Servo motor model |
SR18B04 |
SR18B06 |
SR18B08 |
SR18B10 |
SR18B12 |
SR18B14 |
SR18B16 |
SR18B18 |
SR18B20 |
SR18B22 |
SR18B24 |
|
L1(mm) |
250 |
250 |
282 |
314 |
346 |
378 |
410 |
442 |
474 |
506 |
538 |
|
L2(mm) |
328 |
359 |
390 |
421 |
452 |
483 |
514 |
545 |
576 |
607 |
638 |
|
SR18B series specifications |
|||||||||
|
Model |
Rated torque Tn(Nm) |
Rated current In(A) |
KT (Nm/A) |
Rated power Pn(kW) |
Rated speed N(RPM) |
Rated frequency f(Hz) |
Power level (V) |
Back EMF EMK(V) |
Rated inertia J(kg.m2.10-4) |
|
SR18B04-15F3 |
42 |
12.8 |
3.28 |
6.6 |
1500 |
100 |
380 |
310.2 |
87 |
|
SR18B06-15F3 |
63 |
18.5 |
3.41 |
9.9 |
1500 |
100 |
380 |
321.3 |
124 |
|
SR18B08-15F3 |
84 |
24.4 |
3.44 |
13.2 |
1500 |
100 |
380 |
325 |
161 |
|
SR18B10-15F3 |
105 |
31.6 |
3.32 |
16.5 |
1500 |
100 |
380 |
313.9 |
199 |
|
SR18B12-15F3 |
126 |
38.4 |
3.28 |
19.8 |
1500 |
100 |
380 |
310.2 |
237 |
|
SR18B14-15F3 |
147 |
44.8 |
3.28 |
23.1 |
1500 |
100 |
380 |
310.2 |
274 |
|
SR18B16-15F3 |
168 |
48.9 |
3.44 |
26.4 |
1500 |
100 |
380 |
325 |
312 |
|
SR18B18-15F3 |
189 |
56.6 |
3.34 |
29.7 |
1500 |
100 |
380 |
315.8 |
350 |
|
SR18B20-15F3 |
210 |
63.3 |
3.32 |
33 |
1500 |
100 |
380 |
313.9 |
387 |
|
SR18B22-15F3 |
231 |
67.2 |
3.44 |
36.3 |
1500 |
100 |
380 |
325 |
425 |
|
SR18B24-15F3 |
252 |
76.8 |
3.28 |
39.6 |
1500 |
100 |
380 |
310.2 |
463 |
|
SR18B04-17F3 |
42 |
13.8 |
3.04 |
7.5 |
1700 |
113.3 |
380 |
326.5 |
87 |
|
SR18B06-17F3 |
63 |
20.6 |
3.06 |
11.2 |
1700 |
113.3 |
380 |
326.5 |
124 |
|
SR18B08-17F3 |
84 |
27.6 |
3.04 |
15 |
1700 |
113.3 |
380 |
326.5 |
161 |
|
SR18B10-17F3 |
105 |
35.9 |
2.92 |
18.7 |
1700 |
113.3 |
380 |
313.9 |
199 |
|
SR18B12-17F3 |
126 |
41.3 |
3.05 |
22.4 |
1700 |
113.3 |
380 |
326.5 |
237 |
|
SR18B14-17F3 |
147 |
48.9 |
3.01 |
26.2 |
1700 |
113.3 |
380 |
322.3 |
274 |
|
SR18B16-17F3 |
168 |
53.7 |
3.13 |
29.9 |
1700 |
113.3 |
380 |
334.8 |
312 |
|
SR18B18-17F3 |
189 |
63.1 |
3.00 |
33.6 |
1700 |
113.3 |
380 |
320.2 |
350 |
|
SR18B20-17F3 |
210 |
71.7 |
2.93 |
37.4 |
1700 |
113.3 |
380 |
313.9 |
387 |
|
SR18B22-17F3 |
231 |
76.7 |
3.01 |
41.1 |
1700 |
113.3 |
380 |
322.3 |
425 |
|
SR18B24-17F3 |
252 |
82.8 |
3.04 |
44.9 |
1700 |
113.3 |
380 |
326.5 |
463 |
|
SR18B04-20R3 |
42 |
15.8 |
2.66 |
8.8 |
2000 |
133.3 |
380 |
334.8 |
87 |
|
SR18B06-20R3 |
63 |
24.4 |
2.58 |
13.2 |
2000 |
133.3 |
380 |
325 |
124 |
|
SR18B08-20R3 |
84 |
33.6 |
2.50 |
17.6 |
2000 |
133.3 |
380 |
315.5 |
161 |
|
SR18B10-20R3 |
105 |
41.4 |
2.54 |
22 |
2000 |
133.3 |
380 |
320.1 |
199 |
|
SR18B12-20R3 |
126 |
48.9 |
2.58 |
26.4 |
2000 |
133.3 |
380 |
325 |
237 |
|
SR18B14-20R3 |
147 |
59.8 |
2.46 |
30.8 |
2000 |
133.3 |
380 |
310.2 |
274 |
|
SR18B16-20R3 |
168 |
67.2 |
2.50 |
35.2 |
2000 |
133.3 |
380 |
315.1 |
312 |
|
SR18B18-20R3 |
189 |
76.8 |
2.46 |
39.6 |
2000 |
133.3 |
380 |
310.2 |
350 |
|
SR18B20-20R3 |
210 |
82.7 |
2.54 |
44 |
2000 |
133.3 |
380 |
320.1 |
387 |
|
SR18B22-20R3 |
231 |
89.6 |
2.58 |
48.4 |
2000 |
133.3 |
380 |
325 |
425 |
|
SR18B24-20R3 |
252 |
97.8 |
2.58 |
52.8 |
2000 |
133.3 |
380 |
325 |
463 |
Model Naming Rules
Eg: SR18A10-17F3-R1A1
Shunrui+series No.+Motor type+Segment+Rated speed+Cooling method+Power level+Encoder+Aviation Insertion type+Bearing Type

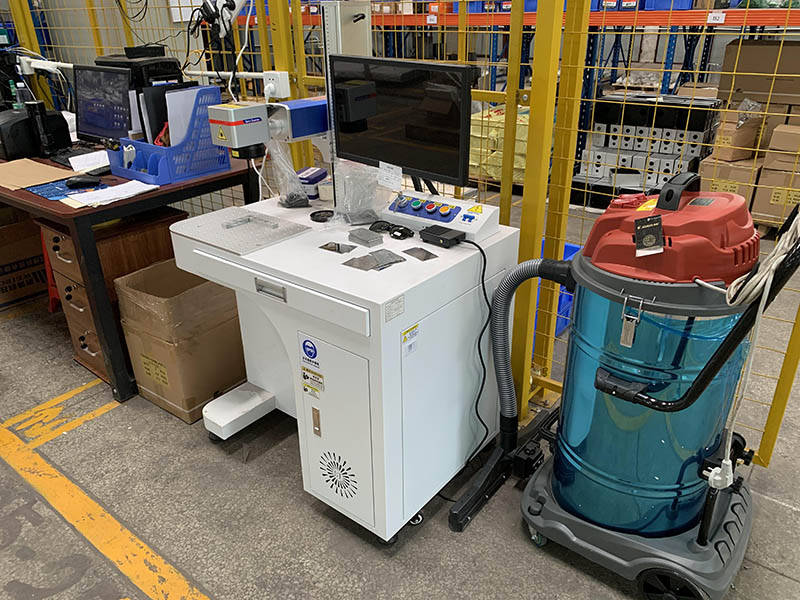

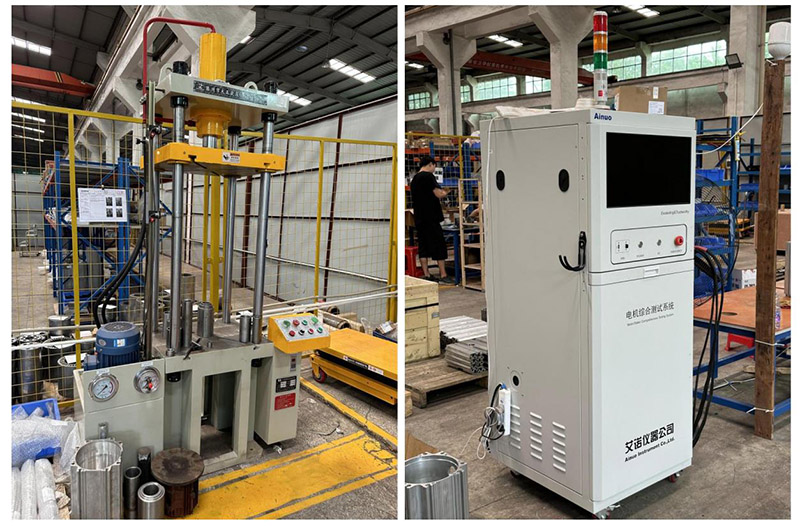

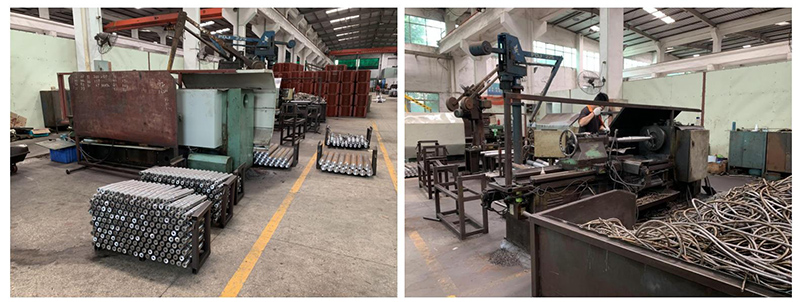

Factory facilities
Application
Hydraulic servo injection molding machine

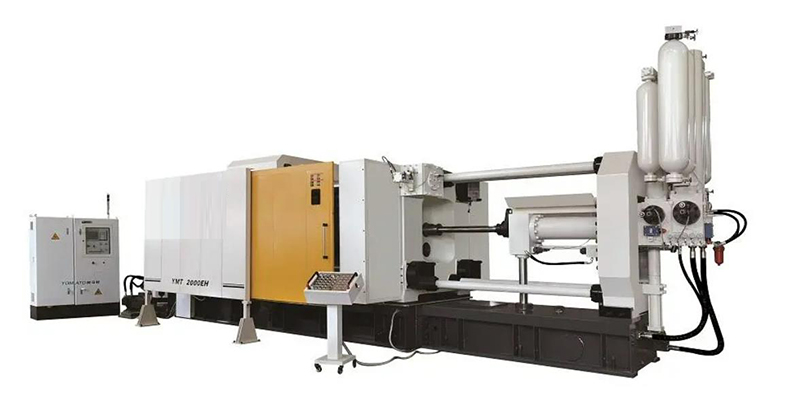

Servo die-casting machine
Keel machine
Plastic extruder
Shearing machine

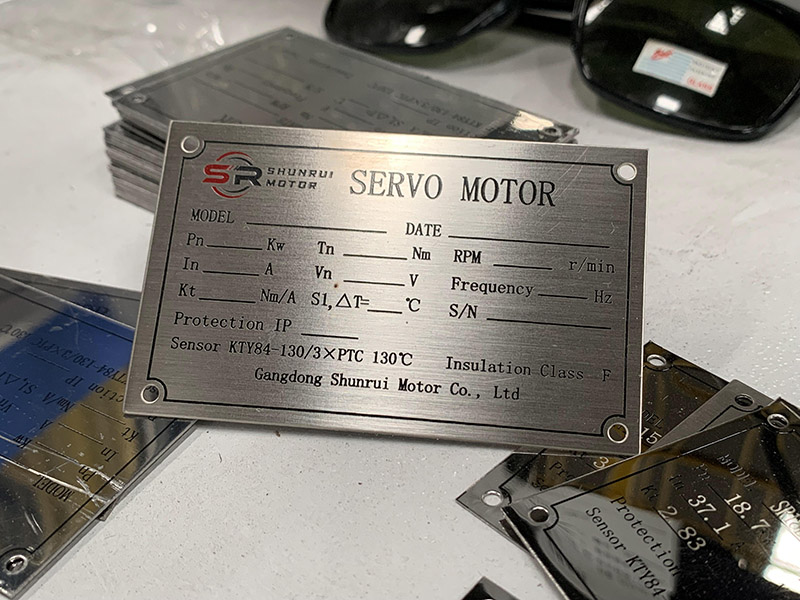

Default tag
Servo Motor Tags could be customized based on requirements

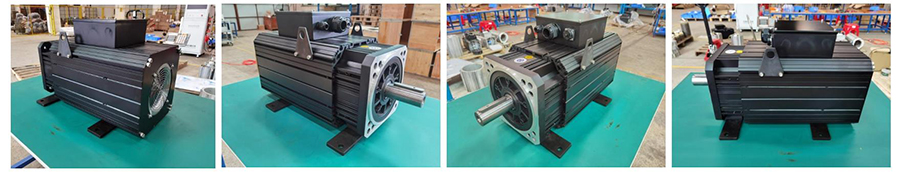

Packing
