Abundant advantages make servo motors an ideal choice for applications that require precise control, high speed, accuracy, and durability, such as electro-hydraulic servo injection molding machine, servo die-casting machine, shoe machine, vulcanizing machine, turntable, packing machine, bottle blowing machine, etc.
MOQ :
1pcsPayment :
T/T LC at sightProduct Origin :
ChinaShipping Port :
Guangzhou/ ShenzhenA servo motor typically consists of a motor, a control circuit, a feedback sensor, and a gearbox or pulley system. The most important part of a servo motor is the feedback sensor, which continuously monitors the position and speed of the motor and provides this information to the control circuit. This allows the control circuit to adjust the motor's movement to precisely match the desired position and speed, which makes servo motors highly accurate and precise.
Product Introduction

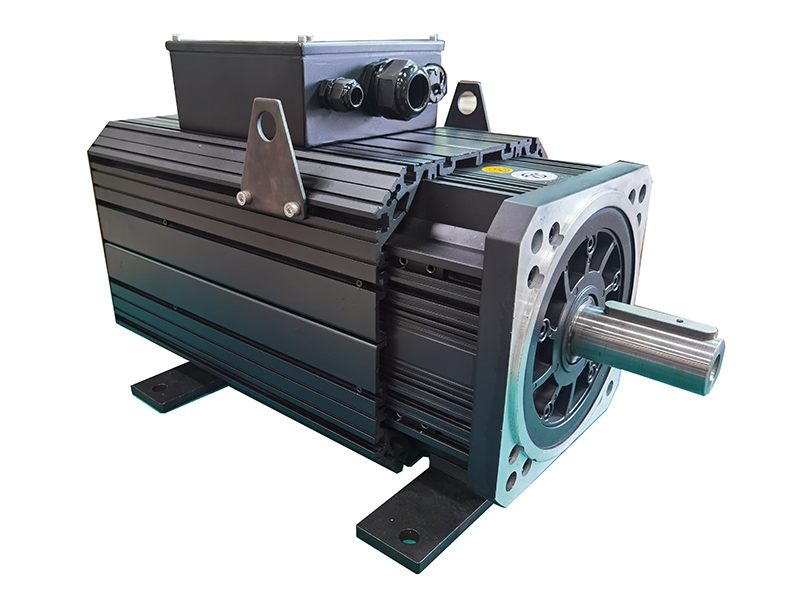

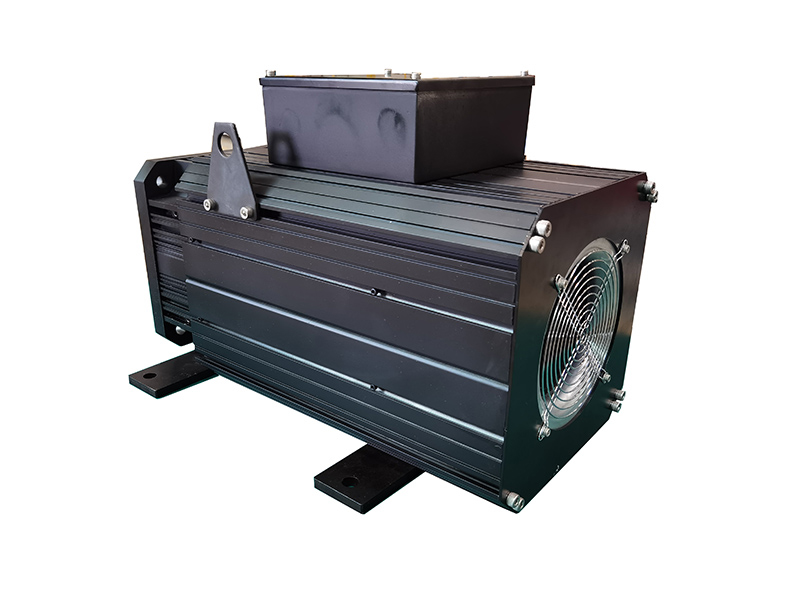

Shunrui servo motor has the characteristics of high efficiency, high response and high precision. It can be widely used in hydraulic servo motor or hydraulic equipment such as injection molding machines and hydraulic machines, and various general servo applications such as motion control.
Shunrui high torque servo motor parameters can also be customized according to customer requirements.
Product Advantages
Precision - Servo motors offer high precision and accuracy in positioning and speed control due to their closed-loop control system.
Speed and Torque - Servo motors can achieve higher speeds and torque than conventional motors of the same size.
Durability - Servo motors are designed to withstand heavy loads, high acceleration, and frequent starts and stops, making them highly durable.
Energy Efficiency - Servo motors operate efficiently, consuming less energy while providing high power output.
Control - The closed-loop control system of a servo motor offers improved control over the motor's operation, ensuring better performance and reliability.
Flexibility - Servo motors can be easily integrated with different types of control systems, making them versatile and flexible in their applications.

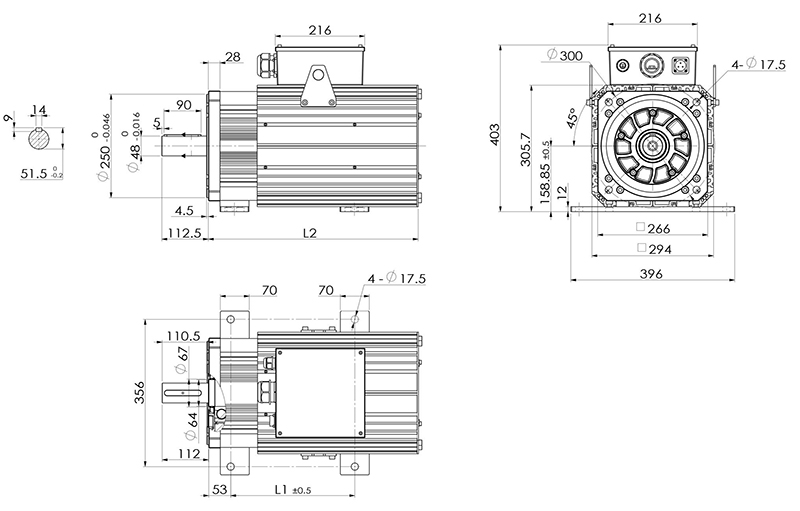

SR25B series - embedded servo motor
|
Servo motor model |
SR25B06 |
SR25B08 |
SR25B10 |
SR25B12 |
SR25B14 |
SR25B16 |
SR25B18 |
SR25B20 |
SR25B22 |
SR25B24 |
SR25B26 |
|
L1(mm) |
224 |
262 |
300 |
338 |
376 |
414 |
452 |
490 |
482 |
520 |
558 |
|
L2(mm) |
432 |
469.5 |
507 |
544.5 |
582 |
619.5 |
657 |
694.5 |
732 |
769.5 |
807 |
|
SR25B series specifications |
|||||||||
|
Model |
Rated torque Tn(Nm) |
Rated current In(A) |
KT (Nm/A) |
Rated power Pn(kW) |
Rated speed N(RPM) |
Rated frequency f(Hz) |
Power level (V) |
Back EMF EMK(V) |
Rated inertia J(kg.m2.10-4) |
|
SR25B06-15F3 |
160.5 |
48.6 |
3.3 |
25.2 |
1500 |
100 |
380 |
311.1 |
441 |
|
SR25B08-15F3 |
214 |
63.6 |
3.36 |
33.6 |
1500 |
100 |
380 |
317.2 |
577 |
|
SR25B10-15F3 |
267.5 |
82.7 |
3.23 |
42 |
1500 |
100 |
380 |
305 |
711 |
|
SR25B12-15F3 |
321 |
97.2 |
3.3 |
50.4 |
1500 |
100 |
380 |
311.1 |
846 |
|
SR25B14-15F3 |
374.5 |
110.2 |
3.4 |
58.8 |
1500 |
100 |
380 |
320.2 |
982 |
|
SR25B16-15F3 |
428 |
127.2 |
3.36 |
67.2 |
1500 |
100 |
380 |
317.2 |
1117 |
|
SR25B18-15F3 |
481.5 |
150.3 |
3.2 |
75.6 |
1500 |
100 |
380 |
301.9 |
1252 |
|
SR25B20-15F3 |
535 |
165.3 |
3.24 |
84 |
1500 |
100 |
380 |
305 |
1387 |
|
SR25B22-15F3 |
588.5 |
183.7 |
3.2 |
92.4 |
1500 |
100 |
380 |
301.9 |
1525 |
|
SR25B24-15F3 |
642 |
183.7 |
3.49 |
100.8 |
1500 |
100 |
380 |
329.4 |
1660 |
|
SR25B26-15F3 |
695.5 |
206.6 |
3.37 |
109.2 |
1500 |
100 |
380 |
317.2 |
1796 |
|
SR25B06-17F3 |
160.5 |
55.2 |
2.91 |
28.6 |
1700 |
113.3 |
380 |
311.1 |
441 |
|
SR25B08-17F3 |
214 |
75.2 |
2.85 |
38.1 |
1700 |
113.3 |
380 |
317.2 |
577 |
|
SR25B10-17F3 |
267.5 |
91.8 |
2.91 |
47.6 |
1700 |
113.3 |
380 |
305 |
711 |
|
SR25B12-17F3 |
321 |
110.2 |
2.91 |
57.1 |
1700 |
113.3 |
380 |
311.1 |
846 |
|
SR25B14-17F3 |
374.5 |
127.3 |
2.94 |
66.7 |
1700 |
113.3 |
380 |
320.2 |
982 |
|
SR25B16-17F3 |
428 |
137.8 |
3.11 |
76.2 |
1700 |
113.3 |
380 |
317.2 |
1117 |
|
SR25B18-17F3 |
481.5 |
165.3 |
2.91 |
85.7 |
1700 |
113.3 |
380 |
301.9 |
1252 |
|
SR25B20-17F3 |
535 |
183.7 |
2.91 |
95.2 |
1700 |
113.3 |
380 |
305 |
1387 |
|
SR25B22-17F3 |
588.5 |
206.8 |
2.85 |
104.8 |
1700 |
113.3 |
380 |
301.9 |
1525 |
|
SR25B24-17F3 |
642 |
206.8 |
3.1 |
114.3 |
1700 |
113.3 |
380 |
329.4 |
1660 |
|
SR25B26-17F3 |
695.5 |
236.3 |
2.94 |
123.8 |
1700 |
113.3 |
380 |
317.2 |
1796 |
|
SR25B06-20F3 |
160.5 |
63.6 |
2.52 |
33.6 |
2000 |
133.3 |
380 |
311.1 |
441 |
|
SR25B08-20F3 |
214 |
82.7 |
2.59 |
44.8 |
2000 |
133.3 |
380 |
317.2 |
577 |
|
SR25B10-20F3 |
267.5 |
103.3 |
2.59 |
56 |
2000 |
133.3 |
380 |
305 |
711 |
|
SR25B12-20F3 |
321 |
127.2 |
2.52 |
67.2 |
2000 |
133.3 |
380 |
311.1 |
846 |
|
SR25B14-20F3 |
374.5 |
150.3 |
2.49 |
78.4 |
2000 |
133.3 |
380 |
320.2 |
982 |
|
SR25B16-20F3 |
428 |
165.3 |
2.59 |
89.6 |
2000 |
133.3 |
380 |
317.2 |
1117 |
|
SR25B18-20F3 |
481.5 |
183.7 |
2.62 |
100.8 |
2000 |
133.3 |
380 |
301.9 |
1252 |
|
SR25B20-20F3 |
535 |
206.6 |
2.59 |
112 |
2000 |
133.3 |
380 |
305 |
1387 |
|
SR25B22-20F3 |
588.5 |
236.2 |
2.49 |
123.2 |
2000 |
133.3 |
380 |
301.9 |
1525 |
|
SR25B24-20F3 |
642 |
236.3 |
2.72 |
134.5 |
2000 |
133.3 |
380 |
329.4 |
1660 |
|
SR25B26-20F3 |
695.5 |
275.7 |
2.52 |
145.7 |
2000 |
133.3 |
380 |
317.2 |
1796 |

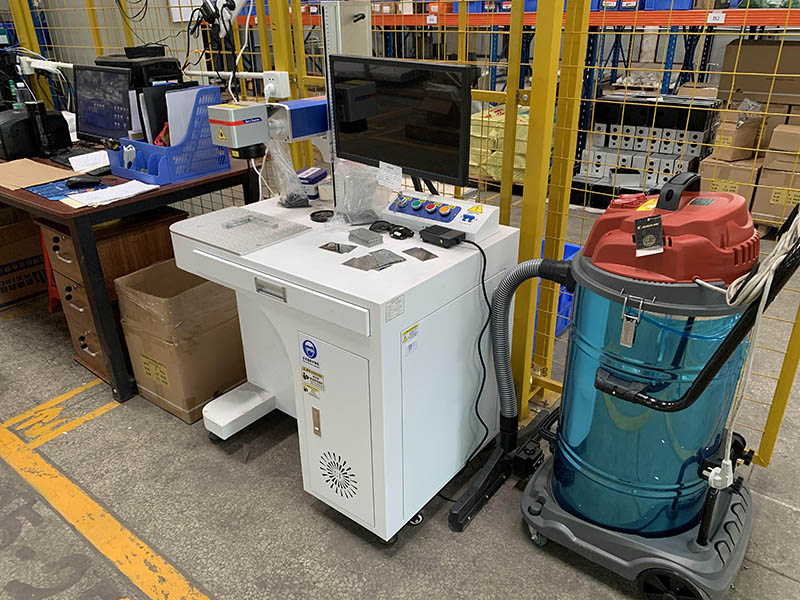

Factory facilities

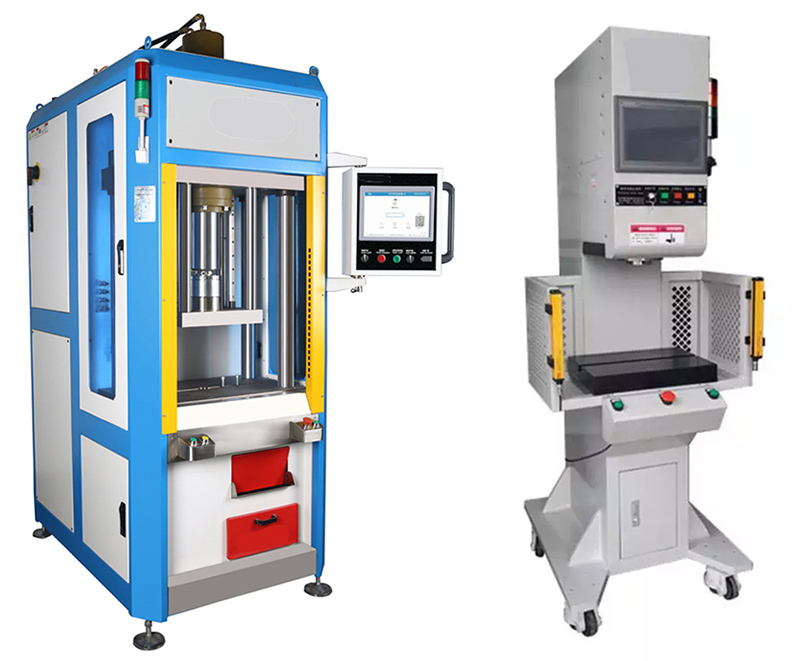

Applications
Hydraulic servo injection molding machine

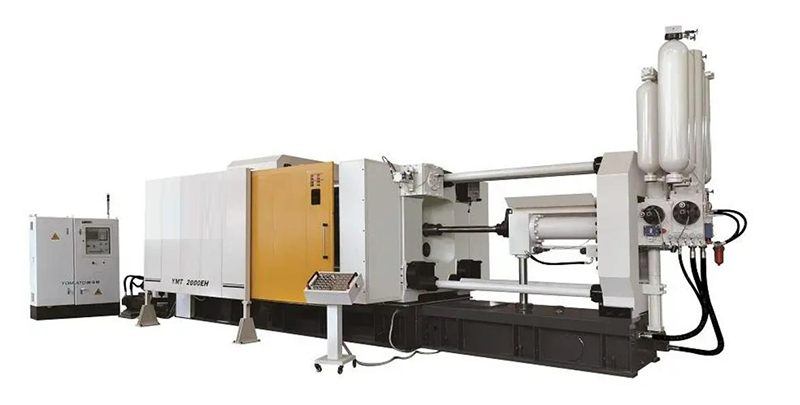

Servo die-casting machine
Shoe machine
Keel machine
Plastic extruder
Shearing machine

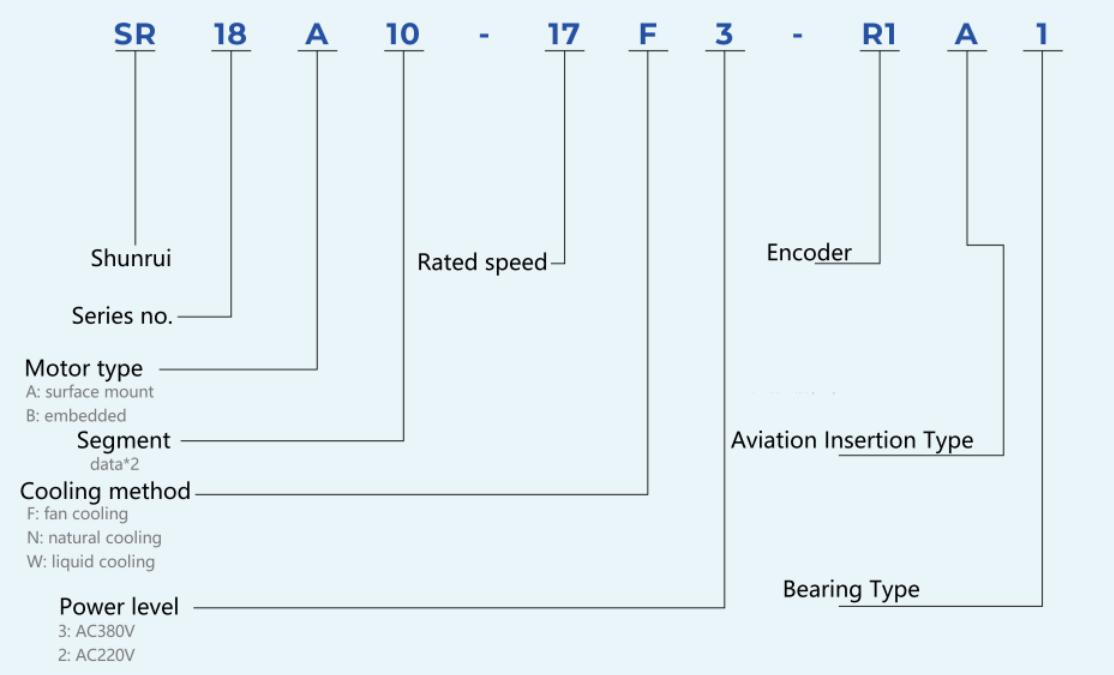

Model Naming Rules
Eg: SR18A10-17F3-R1A1
Shunrui+series No.+Motor type+Segment+Rated speed+Cooling method+Power level+Encoder+Aviation Insertion type+Bearing Type

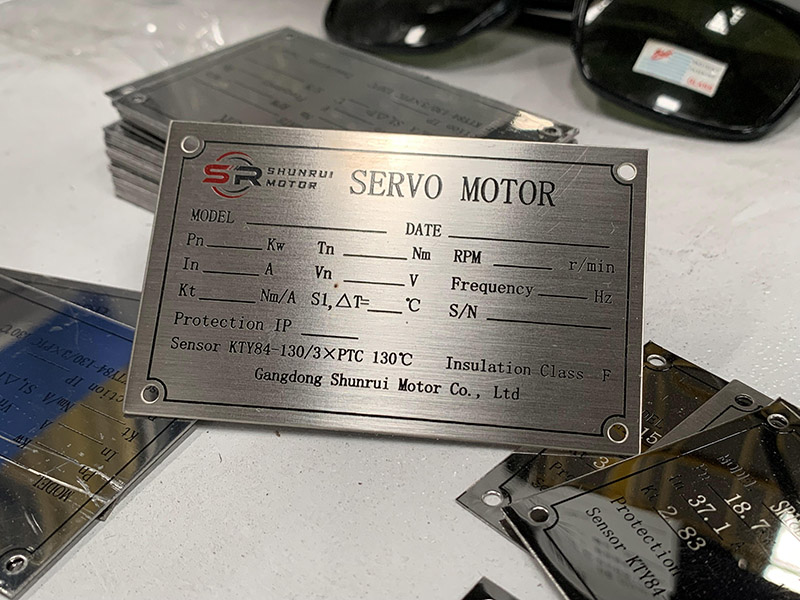

Default tag
Servo Motor Tags could be customized based on requirements
Packing
